Vertical Fresh Meat Tray Wrapping Machine MAP Sealing Machine Automated

Brand Name:	China Xingyuan
Model Number:	LD641
MOQ:	1
Price:	USD 8888~10888
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000 sets/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China Guangdong

Certification:

ISO9001

Body Material:

304 Stainless Steel

Driving Mode:

Pneumatic

Working Press:

0.5Mpa~0.6Mpa

Power Consumption:

1.KW5-5KW

Customization:

Yes

Certificate:

CE ISO9001

Packaging Details:

Wooden Box

Highlight:

Vertical Meat Tray Wrapping Machine

Vertical MAP Sealing Machine

MAP Sealing Machine Automated

Product Description

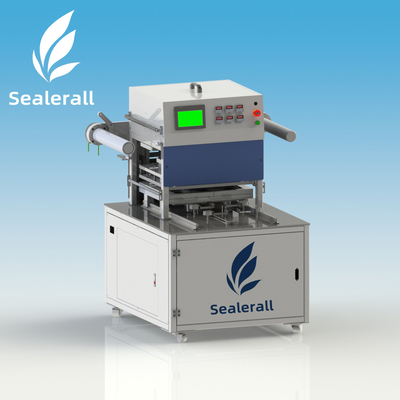

Fresh Meat MAP Packaging Sealer Machine Automatic Tray Sealing Machine

This high-speed multi-row modified atmosphere fresh-locking chain plate sealing machine extends the shelf life of food in low-temperature refrigerated environments without preservatives. It supports vacuum or fresh-keeping gas filling, with optional roll or sheet film sealing. Features include automatic boxing, gas replacement, sealing, date printing, and unloading, with capacity for four or more boxes simultaneously to maximize efficiency.

Technical Parameters

Parameter	Specification
Brand Model	LD641 Vertical Modified Atmosphere Sealing Machine
Type	Modified Atmosphere Fresh-Keeping Sealing Machine
Packing 2 Boxes (Max Size)	30019080 (mm)
Packing 4 Boxes (Max Size)	22016080 (mm)
Packaging Speed	Modified Atmosphere: 4~5 times/min \| General: 5~6 times/min
Working Air Pressure	0.6 Mpa
Replacement Rate	≥99%
Rated Power	220V/50HZ 3KW
Shelf Life	7-15 Days (varies by product type, storage environment, and workshop cleanliness)
Mixed Gas	Two-gas mixing
Program Control Parts	Mitsubishi PLC
Pneumatic Parts	AirTac
Machine Casing	304 Thickened Stainless Steel
Mold Parts	Anodized aluminum alloy acid-resistant mold
Mixer	MOCON Denmark
Power Air Source	0.4~0.6MPa
Warranty	One year
Machine Weight	240 KG

Machine Functions and Configuration

One out of four production capability
Production speed: 1200-1500 pieces/hour (one out of four)
Workflow: Automatic boxing, gas injection, hot pressing/sealing, date printing, and finished product output
Stainless steel 304 construction with food-grade 2B plate, dust/rust/acid/alkali resistant
Hand-polished with small chassis interface and no sharp corners
CNC-machined parts for precision and long-term smooth operation
Food-grade stainless steel 304 chain, water-washable and deformation-resistant
Thick steel frame structure with gantry milling for stability
Durable stainless steel + alumina sealing mold with fast heat conduction
Servo motor drive with ±1°C digital temperature control for reliable sealing
Taiwan photoelectric eye tracking for pattern alignment
Delta PLC control with human-machine interface and fault alarm
Compatible with various sealing materials (minimum 0.1MM thickness)
Air pressure range: 4-8KG/CM²
Temperature range: 0-250°C
Power: 5000-8000W
Voltage: 380V 50HZ
Customizable size
Wooden box packaging

Electrical Accessories

Non-Standard Customization

Custom equipment solutions available based on packaging tray specifications and production requirements. Modified atmosphere packaging preserves food's original taste, color, shape, and nutrition while extending shelf life.

Applicable Packaging

Fast food lunch boxes, fresh poultry/livestock meat, chilled meat, seafood, cooked food, pickles, etc.

Applicable Occasions

Food processing plants, frozen food plants, meat processing plants, fruit/vegetable processing plants, snack food plants, supermarket fresh food back offices, fresh meat chains, food distribution centers, bakeries, restaurants, and beverage shops.

Working Principle

Modified atmosphere packaging replaces box air with fresh-keeping gas. The electrical system controls cylinder movements for mold operation, gas replacement, sealing, and film cutting. Standard sealing involves mold closure and film cutting.

Mixing Ratio

Gas mixers provided with fixed ratios based on food characteristics. Optional ternary gas mixer upgrade available.

Precautions for Use

Connect grounding wire before use
Keep hands clear during operation
Use emergency stop button when needed
Power off when installing sealing film
Gradually increase temperature for first-time sealing
Ensure machine is level on solid ground
Regularly lubricate guide columns
Daily cleaning of conveyor belt and motor
Contact after-sales service for malfunctions

Main Configuration

Electronic control: Mitsubishi PLC, Weiluntong touch screen, Mitsubishi temperature module, Omron relay. Pneumatic: Taiwan AirTac cylinders/valves. Mixing system: Denmark MOCON. Mold: Sandblasted anodized aluminum alloy with Teflon-coated hot plate.

Payment Method

50% deposit after contract signing, remaining 50% after on-site/video inspection and qualification confirmation.

Delivery Period

20-25 days

Warranty Policy

One-year warranty with lifetime service.
