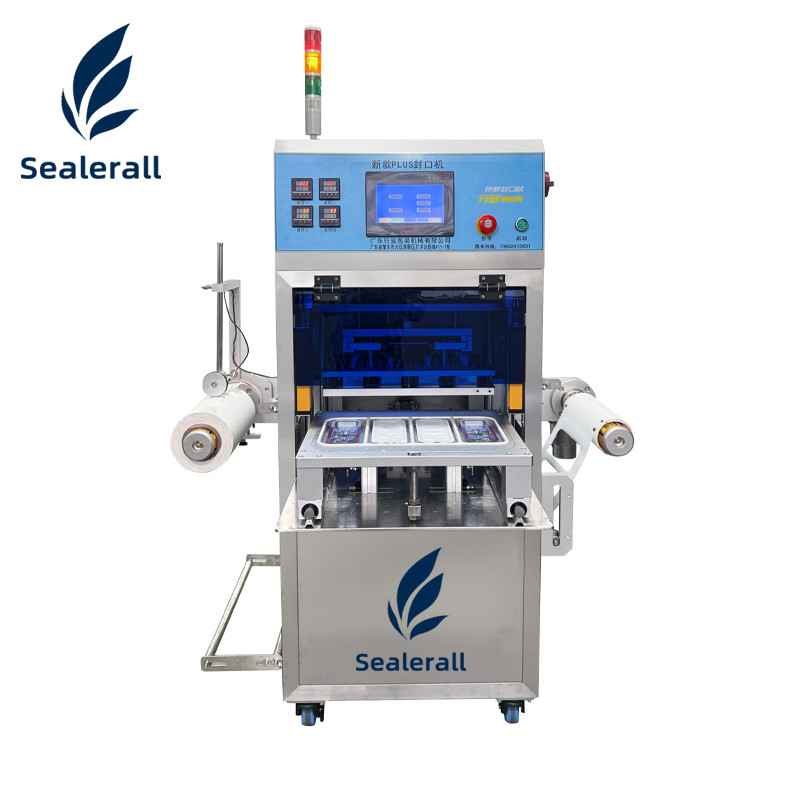

Special Shaped Plastic Cup Lid Sealer Machine 220V With Stainless Steel Appearance

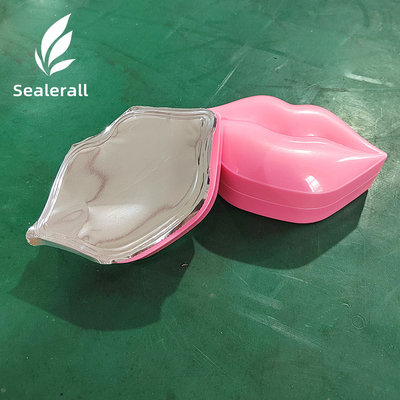

This PLUS fully automatic sealing machine is designed for versatile sealing applications. It features quick mold replacement capability, making it suitable for cups, bowls, boxes, bottles, barrels, and cans of various shapes. The machine offers cost-effective flexibility with multiple uses from a single unit.

The sealing system works with either roll film or sheet film (selectable option). Roll film operation includes automatic punching, sealing, and waste discharge, solving sealing challenges for containers without lids. The machine can seal multiple boxes simultaneously (1, 2, or 4 at a time) to maximize production efficiency.

• Production Capacity: 1000-1200 boxes/hour (six-out-one configuration)
• Operation Process: Manual box placement → Automatic box entry → Air pressure sealing → Automatic waste discharge → Automatic box top
• Safety Features: Anti-pinch device, double-sided safety electronic grating
• Control System: Program control with stable operation
• Interface: 7-inch color touch screen for easy operation and real-time monitoring
• Temperature Control: Digital display with ±5°C accuracy
• Sealing Range: 30-250mm diameter (customizable)
• Compatible Materials: Plastic composite film, aluminum foil composite film, PP, PVC, PE, PET, PS
• Power: 1000-2000W, 220V
• Construction: Stainless steel 304 body
• Package Weight: 204kg (custom model, weight may vary)
• Dimensions: 136×111×168cm (packed in wooden box)

• Connect grounding wire before operation
• Keep hands clear of machine during operation or standby
• Use emergency stop button (red) for immediate shutdown
• Power off when installing sealing film
• For initial sealing, gradually increase temperature from low to high
• Ensure machine is level on solid surface
• Regularly lubricate guide columns
• Daily cleaning of conveyor belt and motor areas
• Contact authorized service for electrical issues

Payment Terms: 50% deposit upon contract signing, 50% balance after inspection (on-site or video confirmation)

Production Time: 7-10 days

Warranty: 1-year guarantee with lifetime service support
