Fully Automatic Cup Sealing Machine For Plastic Wine Glass Easy Operation

Name: Fully Automatic Cup Sealing Machine For Plastic Wine Glass Easy Operation
Brand: Guangdong Xingyuan Packaging Machinery Co., Ltd.
SKU: LD802
Price: 2,588.00 USD
Availability: InStock

Brand Name:	China Xingyuan
Model Number:	LD802
MOQ:	1
Price:	USD 1288-3888
Payment Terms:	L/C,D/A. D/P.T/T,Western Union,MoneyGram
Supply Ability:	1500 sets/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China, Guangdong.

Certification:

ISO 9001

Body Material:

304 Stainless Steel

Driving Mode:

Pneumatic

Working Press:

0.5Mpa~0.6Mpa

Power Consumption:

1.KW5-5KW

Customization:

Yes

Certificate:

CE ISO9001

Packaging Details:

Wooden Box

Highlight:

easy operation Cup Sealing Machine

easy operation cup sealer machine

Glass Cup Sealing Machine

Product Description

Sealerall Cup Sealing Machine For Plastic Wine Glass

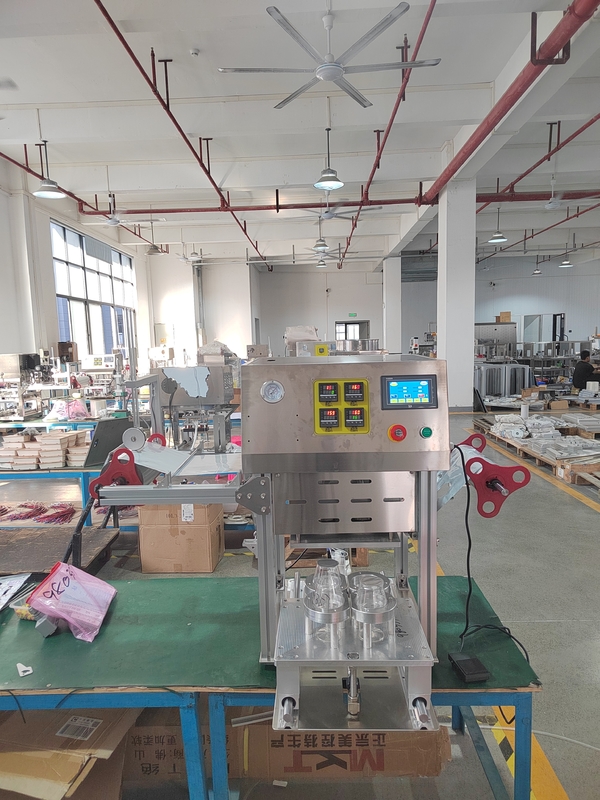

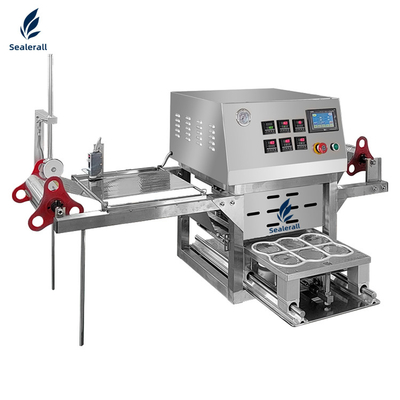

LD802 New Desktop Fully Automatic Sealing Machine

Product Overview

This desktop fully automatic sealing machine is designed for various container shapes including cups, bowls, boxes, bottles, barrels, and jars. It offers economical operation with attractive sealing results, helping customers reduce costs. The machine works with both roll film and sheet film options, with roll film enabling automatic punching, sealing, and waste discharge. It efficiently seals containers without lids and can handle one, two, or four boxes simultaneously to maximize production efficiency.

Machine Functions and Configuration

One out of Six operation mode
Production speed: 1000-1200 boxes/hour
Production process: Manual box placement, automatic box entry, air pressure sealing, automatic waste discharge
Program control for stable and reliable operation
Touch screen human-machine interface for easy operation and real-time monitoring
Digital display temperature control (±5°C) for optimal sealing
Precision guide rail for smooth operation and accurate positioning
Taiwan photoelectric eye tracking system
Customizable sealing diameter: 30-250mm
Compatible with various sealing materials: plastic composite film, aluminum foil, PP, PVC, PE, PET, PS
Sealing film size 2-3mm larger than cup mouth for tight, attractive seals
Air pressure range: 4-8KG/CM²
Temperature range: 0-300°C
Power: 1000-2000W
Voltage: 220V
Stainless steel construction
Net weight: approximately 100kg (custom models may vary)
Packing dimensions: 156×101×85cm
Wooden box packaging
Includes: instruction manual, hexagonal wrench, cross screwdriver, paper tube

Precautions for Use

Connect grounding wire before operation
Keep hands clear of machine during standby or operation
Press red emergency stop button for emergencies
Power off when installing sealing film
Gradually increase temperature for initial sealing
Ensure machine is level on solid surface
Regularly lubricate guide columns to reduce wear
Daily cleaning of conveyor belt and motor areas
Contact authorized service for any malfunctions

Main Configuration

No.	Name	Brand	Origin
1	Main Body	Stainless Steel 304	Guangzhou
2	Electric Switch	Shuangke	Nanjing
3	PLC	Homemade	Guangzhou
4	Display	4.3-inch Color Touch Screen	Guangzhou
5	Relay	Sanle	Zhejiang
6	Cylinder	AirTac	Taiwan
7	Temperature Control Meter	RKC	Domestic
8	Motor	Taili	Joint Venture
10	Solenoid Valve	AirTac	Taiwan

Payment Method

50% deposit required after contract signing. Remaining 50% payable after equipment completion, either through on-site inspection or video confirmation. Equipment will be delivered after final payment and quality inspection.

Delivery Period

7-10 days

Warranty Policy

1-year warranty with lifetime service support
