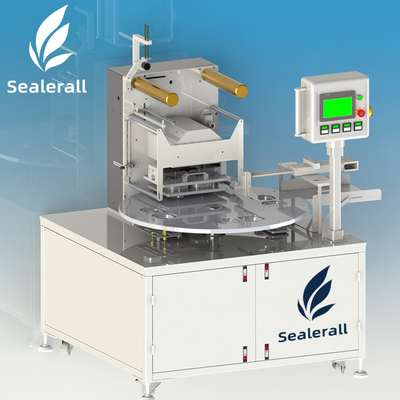

220V Automatic Cup Filling And Sealing Machine 1000-1200 Cups/Hour

Brand Name:	China Xingyuan
Model Number:	LD641
MOQ:	1
Price:	USD 12888~14988
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000 sets/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China Guangdong.

Certification:

ISO9001

Body Material:

304 Stainless Steel

Driving Mode:

Pneumatic

Working Press:

0.5Mpa~0.6Mpa

Power Consumption:

1.KW5-5KW

Customization:

Yes

Certificate:

CE ISO9001

Packaging Details:

Wooden Box

Highlight:

automatic cup filling and sealing machine

220V cup filling and sealing machine

1200 Cups/Hour cup filling sealing machine

Product Description

Sealerall Cupping Filling Sealing Capping Machine

This fully automatic disc filling and sealing machine is designed for high-efficiency production lines. It features automatic cup dispensing, filling, sealing, and ejection with optional integration capabilities for complete production line automation.

Key Features

Fully automated operation with production speeds of 1000-1200 cups/hour
Compatible with roll film or sheet film sealing materials
Can seal four or more cups simultaneously (configurable)
Precision filling with ±1% accuracy for liquids, emulsions, and pastes
Stainless steel 316 servo pump filling system
Delta PLC program control with touch screen interface
Adjustable temperature range (room temp to 300°C) with ±5°C precision
Comprehensive fault and temperature alarm systems
Taiwan photoelectric eye tracking for precise operation

Technical Specifications

Filling Material	Liquid, emulsion, paste
Filling Method	Stainless steel 316 servo pump
Control System	Delta PLC with Weilun touch screen
Temperature Range	Room temperature to 300°C (±5°C)
Air Pressure	4-8KG/CM²
Power	1000-2000W
Voltage	220V (110V or custom options available)
Construction	Stainless steel 304
Net Weight	Approx. 500KG (custom variations possible)

Premium Components

Operation screen: Taiwan Weilun touch screen
PLC: Delta
Frequency Converter: Delta inverter
Motor: Taili motor
Divider: Lianrui divider
Cylinder: Taiwan Yadeke cylinder
Solid state: Taiwan Yangming
Power supply: Delta
Relay: France Schneider

Safety & Maintenance

Always connect grounding wire before operation
Keep hands clear of moving parts during operation
Use emergency stop button for immediate shutdown
Install sealing film only when power is off
Gradually increase temperature for first-time sealing
Ensure machine is level on solid surface
Regularly lubricate guide columns
Daily cleaning of conveyor belt and motor areas
Contact authorized service for electrical issues

After-Sales Service

One-year warranty with lifetime support. During warranty period, replacement parts are provided free of charge (buyer responsible for shipping costs).
