Shrimp Cake MAP Tray Sealer 110V PLC Control Disposable Food Container Sealing Machine

Brand Name:	China Xingyuan
Model Number:	LD801
MOQ:	1
Price:	USD 68888-98888
Payment Terms:	L/C,D/A,D/P,T/T,MoneyGram,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China, Guangdong.

Certification:

ISO 9001

Body Material:

304 Stainless Steel

Driving Mode:

Pneumatic

Working Press:

0.5Mpa~0.6Mpa

Power Consumption:

1.KW5-5KW

Customization:

Yes

Certificate:

CE ISO9001

Packaging Details:

Wooden Box

Highlight:

110V MAP Tray Sealer

110V disposable food container sealing machine

PLC Control MAP Tray Sealer

Product Description

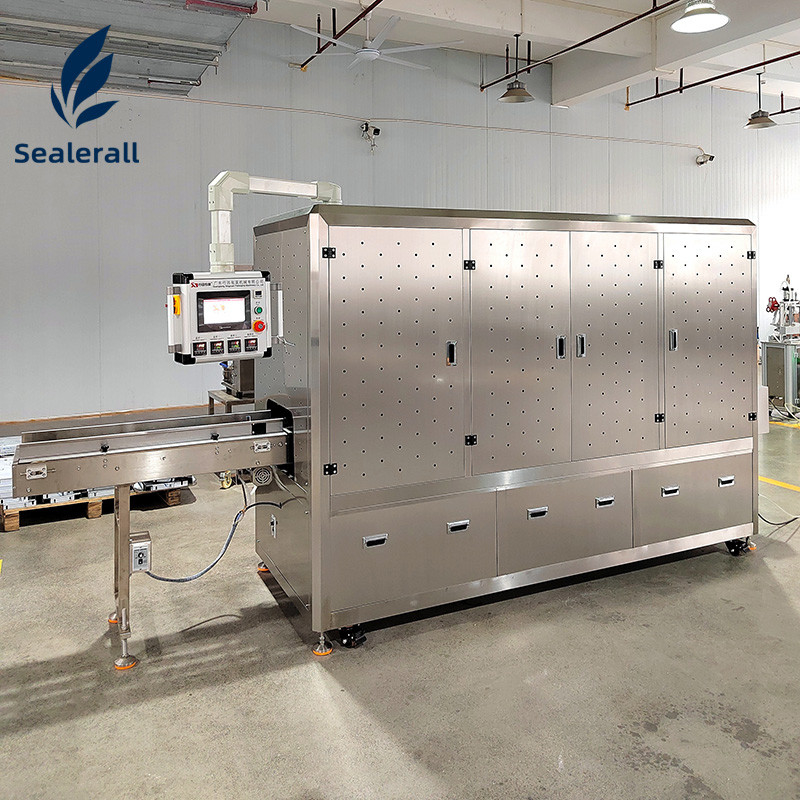

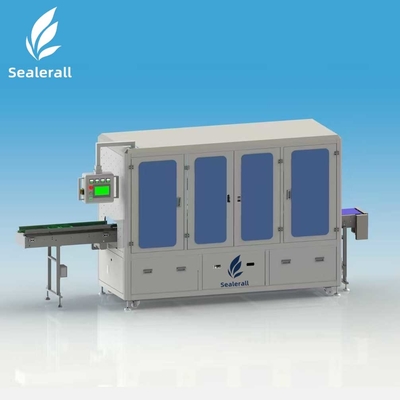

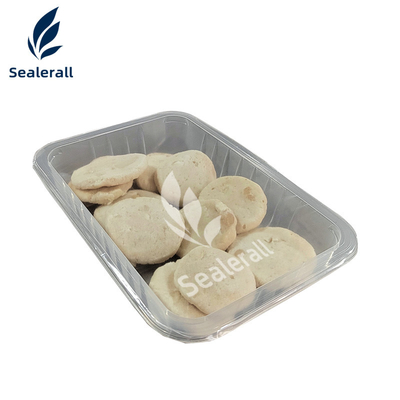

Shrimp Cake MAP Tray Sealer Pneumatic 110V With PLC Control

Product Overview

The Shrimp Cake MAP Modified Atmosphere Packaging Line is a fully automatic sealing machine designed for high-efficiency production. This advanced system features automatic hot press sealing, conveying, and film cutting capabilities, capable of sealing six bottles simultaneously to maximize productivity.

Key Features

High capacity: Seals six bottles per cycle
Production speed: 1200-1500 bottles/hour (varies by container specifications)
Fully automated process: Automatic bottle feeding, film sealing, and finished product delivery
Integration capability: Can be connected to production lines for unmanned operation
Advanced control system: Delta PLC with 7-inch touch screen interface
Precision temperature control: ±5°C variation for optimal sealing results

Technical Specifications

Sealing Diameter	50-250mm (custom shapes available)
Sealing Material	Plastic composite film, aluminum foil composite film, PP, PE, PET, PS
Air Pressure Range	4-8KG/CM²
Temperature Range	0-300°C
Power Consumption	500-1000W
Voltage	220V/110V
Machine Dimensions	2500×1000×1500mm
Work Surface Height	830mm (customizable)
Construction Material	Stainless steel

Safety & Maintenance

Always connect grounding wire before operation
Keep hands clear of machine during operation
Emergency stop button available for immediate shutdown
Power off when installing sealing film
Gradual temperature increase recommended for first-time use
Ensure level installation on solid surface
Regular lubrication of guide columns required
Daily cleaning of conveyor belt and motor
Professional service required for electrical issues

Payment & Delivery

50% deposit required upon contract signing, with remaining 50% due after equipment completion and inspection (either on-site or via video confirmation). Delivery period: 15-20 days.

Warranty

1-year warranty with lifetime service support.
