304SS Body Industrial MAP Tray Sealer 500W-1000W High Efficiency

Brand Name:	China Xingyuan
Model Number:	LD801
MOQ:	1
Price:	7098
Payment Terms:	L/C,D/A,D/P,T/T,MoneyGram,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China, Guangdong.

Certification:

ISO 9001

Body Material:

304 Stainless Steel

Driving Mode:

Pneumatic

Working Press:

0.5Mpa~0.6Mpa

Power Consumption:

1.KW5-5KW

Customization:

Yes

Certificate:

CE ISO9001

Packaging Details:

Wooden Box

Highlight:

304SS Body MAP Tray Sealer

MAP Tray Sealer 500W

map tray sealing machine 1000W

Product Description

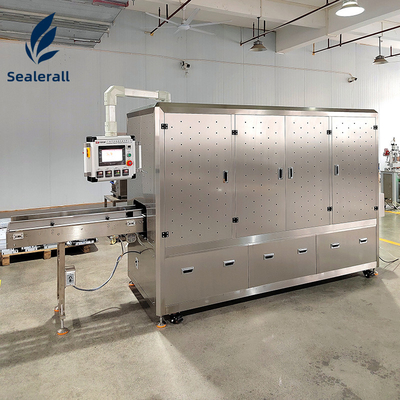

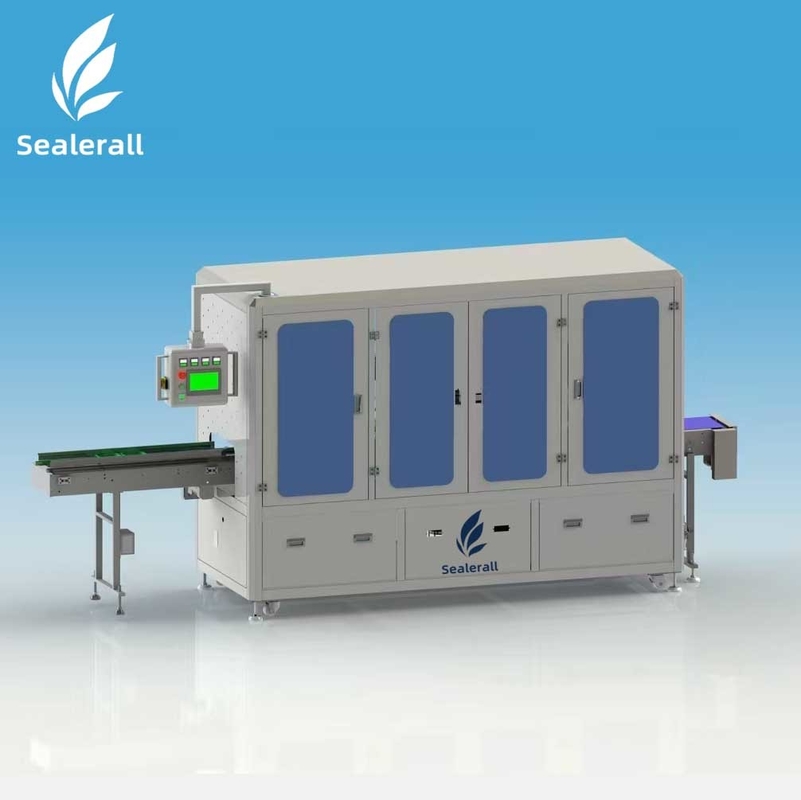

Stainless Steel MAP Tray Sealer Industrial Full Automatic 500-1000W

Preserved Fruit MAP Modified Atmosphere Packaging Line

This advanced full-automatic sealing machine features roll film sealing with automatic hot pressing, conveying, and film cutting. Capable of sealing six bottles simultaneously, it significantly reduces labor requirements while improving production efficiency.

Machine Features and Specifications

Capacity: Six bottles per cycle
Production speed: 1200-1500 bottles/hour (varies by container specifications)
Automated process: bottle feeding, film sealing, and finished product delivery
Compatible with production line integration for unmanned operation
Delta PLC control system with 7-inch touch screen interface
Precision digital temperature control (±5°C) for optimal sealing
Taiwanese photoelectric eye tracking system
Sealing diameter: 50-250mm (custom shapes available)
Compatible with various sealing materials: plastic composite film, aluminum foil, PP, PE, PET, PS

Technical Specifications	Details
Air Pressure Range	4-8KG/CM²
Temperature Range	0-300°C
Power	500-1000W
Voltage	220V/110V
Machine Dimensions	2500×1000×1500mm
Work Surface Height	830mm (customizable)
Construction	Stainless steel
Packing	Wooden frame

Standard Accessories

2 × 10A fuses
Instruction manual
Hexagonal wrench
Cross screwdriver
Paper tube

Operation Safety Guidelines

Connect grounding wire before operation
Keep hands clear during operation
Use emergency stop button when needed
Power off when installing sealing film
Gradually increase temperature for initial use
Ensure machine is level on solid surface
Regularly lubricate guide columns
Maintain daily cleaning, especially conveyor belt and motor
Contact authorized service for repairs

Payment and Delivery Terms

50% deposit upon contract signing, balance payable after equipment completion and inspection (on-site or via video). Delivery follows final payment release.

Production Lead Time: 15-20 days

Warranty: 1-year guarantee with lifetime service support
