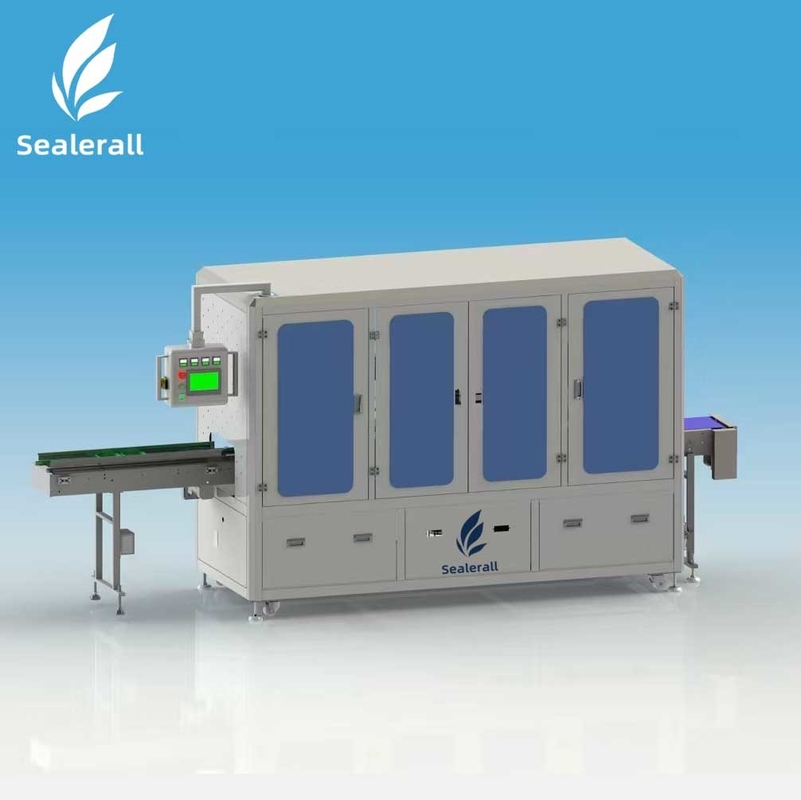

Fully Automatic MAP Tray Sealer 50-250mm Sealing Diameter User Friendly

The machine is a new type of general assembly line full-automatic sealing machine developed according to market demand. The sealing film is in rolls, with automatic hot pressing sealing, automatic conveying, and automatic roll film cutting. It can seal six bottles at a time, saving human resources and improving production efficiency.

• Six bottles per one sealing operation
• Production speed: 1200-1500 bottles per hour (actual speed depends on container specifications)
• Production process: automatic bottle feeding, automatic film rolling and sealing, and automatic finished product delivery
• Can be connected to production line for unmanned operation
• Delta PLC program control with 7-inch touch screen interface
• Digital display temperature control with ±5°C accuracy
• Taiwan photoelectric eye tracking system
• Sealing diameter: 50-250mm (custom shapes available)
• Sealing film extends 2-3mm beyond bottle mouth thread
• Compatible with various sealing materials including plastic composite film, aluminum foil composite film, PP, PE, PET, PS

• 2 × 10A fuses
• Instruction manual
• Hexagonal wrench
• Cross screwdriver
• Paper tube



• 50% deposit upon contract signing
• 50% balance payment after equipment completion and inspection
• Delivery period: 15-20 days

The machine is guaranteed for one year with lifetime service support.
