MAP Tray Sealer
Created with Pixso.

Pneumatic Modified Atmosphere Packaging Machines For Supermarkets

Pneumatic Modified Atmosphere Packaging Machines For Supermarkets

Brand Name: China Xingyuan
Model Number: LD641
MOQ: 1
Price: USD 12888~14988
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000 sets/Month
Detail Information
Place of Origin:
China, Guangdong.
Certification:
ISO9001
Body Material:
304 Stainless Steel
Driving Mode:
Pneumatic
Working Press:
0.5Mpa~0.6Mpa
Power Consumption:
1.KW5-5KW
Customization:
Yes
Certificate:
CE ISO9001
Packaging Details:
Wooden Box
Highlight:

Supermarkets Modified Atmosphere Packaging Machines

,

Pneumatic Modified Atmosphere Packaging Machines

,

Supermarkets MAP Sealer

Product Description
High Durability MAP Tray Sealer - Energy Efficient Food Preservation Solution
This high-speed multi-row modified atmosphere tray sealer extends food shelf life in refrigerated environments without preservatives. Capable of vacuum sealing or gas flushing, it accommodates both roll and sheet films. Features include automatic tray loading, gas replacement, reliable double sealing, automatic unloading, date printing, and simultaneous sealing of four or more trays - significantly improving production efficiency while maintaining food freshness.
Technical Specifications
Parameter Specification
Brand Model LD641 Modified Atmosphere Tray Sealer
Type Modified Atmosphere Packaging Machine
Packing Capacity (2 boxes max size) 300*190*80 (mm)
Packing Capacity (4 boxes max size) 220*160*80 (mm)
Packaging Speed Modified Atmosphere: 4-5 cycles/min
Standard Packaging: 5-6 cycles/min
Working Air Pressure 0.6 Mpa
Gas Replacement Rate ≥99%
Power Requirements 220V/50HZ 3KW
Extended Shelf Life 7-15 days (varies by product type and storage conditions)
Key Components PLC: Mitsubishi
Pneumatics: AirTac
Frame: 304 Stainless Steel
Molds: Anodized Aluminum Alloy
Weight 1000 kg
Warranty 1 year full machine warranty

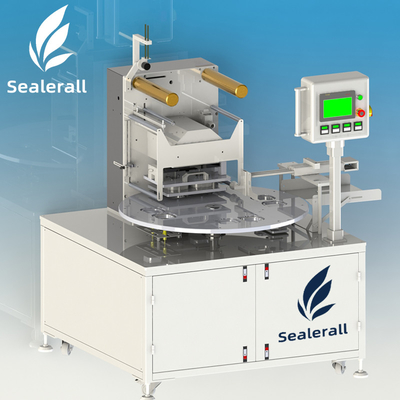

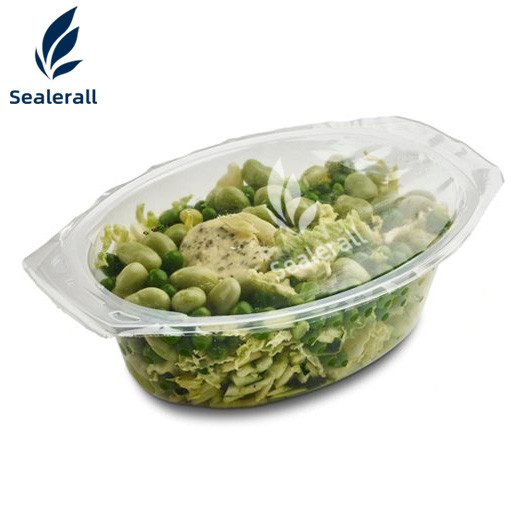

Pneumatic Modified Atmosphere Packaging Machines For Supermarkets 0 Pneumatic Modified Atmosphere Packaging Machines For Supermarkets 1
Key Features & Configurations
  • High production capacity: 1200-1500 units/hour (4-tray configuration)
  • Automated workflow: tray loading, gas injection, sealing, date printing, and product discharge
  • Premium 304 stainless steel construction with brushed finish - rustproof and chemical resistant
  • Precision CNC-machined components for smooth operation and extended service life
  • Food-grade stainless steel conveyor chain - washable and deformation-resistant
  • Sturdy steel frame with gantry milling for maximum stability
  • Durable sealing molds (stainless steel + alumina) with excellent heat conduction
  • Servo motor drive with ±1°C temperature control for consistent seals
  • Taiwanese photoelectric tracking for perfect seal alignment
  • Delta PLC with touchscreen interface and fault diagnostics
  • Compatible with various sealing films (minimum 0.1mm thickness)
Electrical Components
Premium Components: Taiwan Weilun HMI, Delta PLC, AirTac pneumatic systems, Schneider electrical components, Fuji temperature controllers, and MOCON gas mixer (Denmark).
Customization Options
We offer custom solutions tailored to your specific tray dimensions and production requirements. Modified atmosphere packaging preserves food's natural qualities while extending shelf life through optimal gas mixtures.
Applications
Ideal for: prepared meals, fresh/chilled meats, seafood, cooked foods, pickles, and more. Perfect for food processors, meat plants, supermarkets, restaurants, and distribution centers.
Operation Principle
The machine replaces tray air with preservative gas mixture, controlled via PLC. Cycle includes: tray loading → gas replacement → sealing → film cutting → product discharge. Standard sealing skips gas replacement steps.
Gas Mixing Options
Custom gas mixtures (N₂, O₂, CO₂) tailored to product requirements. Upgrade available to ternary gas mixer.
Safety & Maintenance
  • Always connect grounding wire before operation
  • Keep hands clear during operation - use emergency stop if needed
  • Power off when changing sealing film
  • Gradual temperature increase for first-time use
  • Ensure machine is level on solid surface
  • Regular lubrication and cleaning required
  • Professional service only for electrical repairs
Ordering & Warranty
Payment: 50% deposit, balance upon inspection/completion
Lead Time: 20-25 days
Warranty: 1 year full machine warranty with lifetime support
