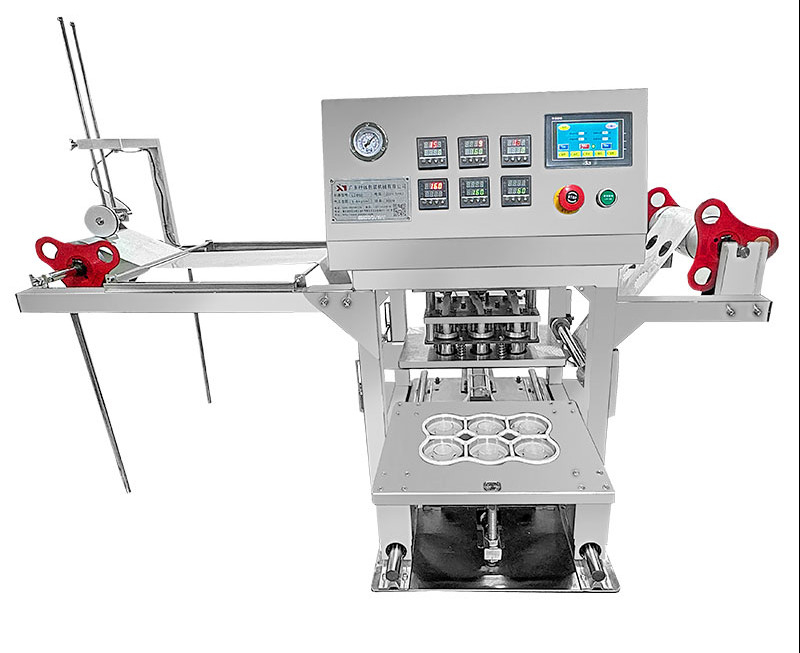

Pneumatic Bucket Sealer Machine With 30-250mm Sealing Diameter

Brand Name:	China Xingyuan
Model Number:	LD802
MOQ:	1
Price:	USD 2388-5888
Payment Terms:	L/C,D/A. D/P.T/T,Western Union,MoneyGram
Supply Ability:	3000 sets/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China Guangdong

Certification:

ISO 9001

Body Material:

304 Stainless Steel

Driving Mode:

Pneumatic

Working Press:

0.5Mpa~0.6Mpa

Power Consumption:

1.KW5-5KW

Customization:

Yes

Certificate:

CE ISO9001

Packaging Details:

Wooden Box

Highlight:

250mm diameter Bucket Sealer Machine

Pneumatic Bucket Sealer Machine

250mm Sealing diameter bucket sealer

Product Description

Anti Pinch Bucket Sealing Machine - Energy Efficient Integrated

Product Overview

This PLUS fully automatic sealing machine is designed to meet diverse market demands. Featuring quick-change molds, it accommodates various container shapes including cups, bowls, boxes, bottles, barrels, and cans. Its flexible design offers cost savings through multi-purpose functionality. The machine works with either roll film or sheet film (plastic composite material), automatically performing punching, sealing, and waste discharge for lidless containers. Capable of sealing multiple boxes simultaneously (1, 2, or 4 at a time), it significantly enhances production efficiency while saving space.

Machine Functions and Specifications

Six-out-one production configuration
Production speed: 1000-1200 boxes/hour
Production process: Manual box placement with automatic entry, air pressure sealing, automatic waste discharge, and box topping
Safety features: Anti-pinch device with double-sided electronic grating
Program-controlled operation for reliable performance
7-inch color touch screen interface for easy monitoring and operation
Precision digital temperature control (±5°C) for optimal sealing
Precision guide rails ensure smooth, accurate positioning
Taiwanese photoelectric eye tracking system
Sealing diameter range: 30-250mm (customizable)
Compatible materials: Plastic composite film, aluminum foil, PP, PVC, PE, PET, PS
Sealing film size: 2-3mm larger than container opening for tight, attractive seals
Air pressure range: 4-8KG/CM²
Temperature range: 0-300°C
Power: 1000-2000W
Voltage: 220V
Stainless steel construction
Package weight: ~204kg (custom models may vary)
Package dimensions: 136×111×168cm (L×W×H)
Wooden box packaging
Includes: Instruction manual, hexagonal wrench, cross screwdriver, paper tube

Main Configuration

No.	Component	Brand	Origin
1	Main Body	Stainless Steel 304	Guangzhou
2	Electric Switch	Shuangke	Nanjing
3	PLC	Homemade	Guangzhou
4	Display	7-inch Color Touch Screen	Guangzhou
5	Relay	Sanle	Zhejiang
6	Cylinder	AirTac	Taiwan
7	Temperature Control Meter	RKC	Domestic
8	Motor	Taili	Joint Venture
10	Solenoid Valve	AirTac	Taiwan

Operation Safety Guidelines

Connect grounding wire before operation
Never insert hands into machine during standby or operation
Use emergency stop button (red) when needed
Power off when installing sealing film
For initial use, gradually increase temperature from low to high
Ensure machine is level on solid ground
Regularly lubricate guide columns to reduce wear
Daily cleaning of conveyor belt and motor areas
Contact authorized service for any malfunctions

Commercial Terms

Payment: 50% deposit upon contract signing, balance due after on-site/video inspection and approval.
Delivery: 7-10 days production lead time.
Warranty: 1-year guarantee with lifetime service support.
