High Efficiency Bucket Tray Sealer Reliable With Simple Operation

Brand Name:	China Xingyuan
Model Number:	LD802
MOQ:	1
Price:	USD 2388-5888
Payment Terms:	L/C,D/A. D/P.T/T,Western Union,MoneyGram
Supply Ability:	3000 sets/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China Guangdong

Certification:

ISO 9001

Body Material:

304 Stainless Steel

Driving Mode:

Pneumatic

Working Press:

0.5Mpa~0.6Mpa

Power Consumption:

1.KW5-5KW

Customization:

Yes

Certificate:

CE ISO9001

Packaging Details:

Wooden Box

Highlight:

High Efficiency Bucket Tray Sealer

High Efficiency plastic container sealer machine

Reliable Bucket Tray Sealer

Product Description

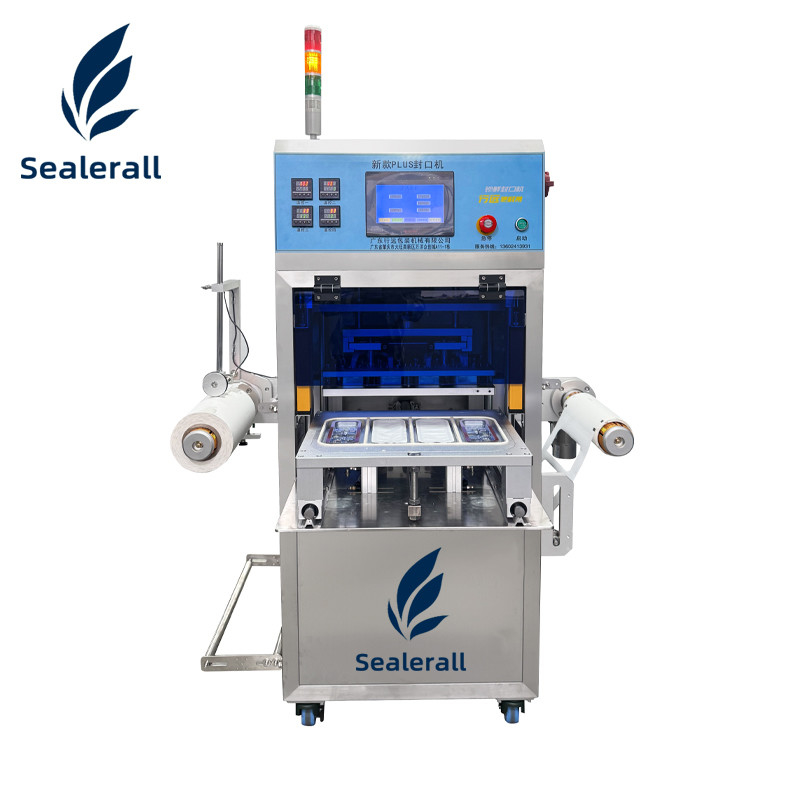

High Efficiency Bucket Tray Sealer Reliable With Simple Operation

Product Overview

This PLUS fully automatic sealing machine features quick mold replacement, making it suitable for sealing various container shapes including cups, bowls, boxes, bottles, barrels, and cans. Its flexible design helps customers reduce costs through multi-purpose functionality. The machine supports both roll film and sheet film sealing options, with automatic punching, sealing, and waste discharge capabilities for roll film applications.

Key Features

Six-out-one production capability
Production speed: 1000-1200 boxes/hour
Touch screen control with real-time operation monitoring
Precision temperature control (±5°C) for optimal sealing
Safety features including anti-pinch device and electronic grating
Stainless steel construction with smooth precision guide rails
Compatible with various sealing materials (PP, PVC, PE, PET, PS)
Customizable sealing diameter: 30-250mm

Technical Specifications

Air pressure range: 4-8KG/CM²
Temperature range: 0-300°C
Power: 1000-2000W
Voltage: 220V
Package weight: 204kg (custom models may vary)
Package dimensions: 136×111×168cm

Main Components

No.	Name	Brand	Origin
1	Main Body	Stainless Steel 304	Guangzhou
2	Electric Switch	Shuangke	Nanjing
3	PLC	Homemade	Guangzhou
4	Display	7-inch Color Touch Screen	Guangzhou
5	Relay	Sanle	Zhejiang
6	Cylinder	AirTac	Taiwan
7	Temperature Control Meter	RKC	Domestic
8	Motor	Taili	Joint Venture
10	Solenoid Valve	AirTac	Taiwan

Operation & Safety Guidelines

Always connect grounding wire before operation
Keep hands clear during operation - never insert hands into running machine
Use emergency stop button (red) for immediate shutdown
Power off before installing sealing film
Gradually increase temperature for first-time sealing
Ensure machine is level on solid surface
Regularly lubricate guide columns
Daily cleaning of conveyor belt and motor areas
Contact authorized service for any malfunctions

Payment & Delivery Terms

50% deposit upon contract signing
50% balance after equipment completion and inspection (on-site or video confirmation)
Delivery period: 7-10 days
Warranty: 1 year with lifetime service support
