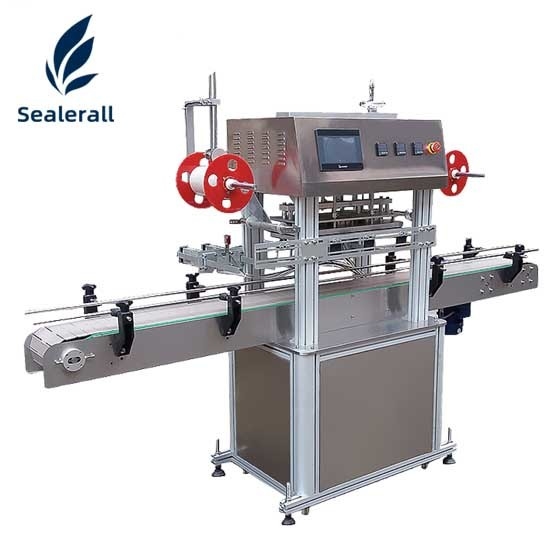

Accurate Aluminium Foil Bottle Sealing Machine High Speed With Program Control

This fully automatic sealing machine is designed for versatile packaging applications. Featuring quick-change molds, it accommodates various container shapes including cups, bowls, boxes, bottles, barrels, and cans. The machine offers flexible operation with cost-saving benefits through multi-purpose functionality.

Sealing options include plastic composite material films available in roll or sheet formats. The roll film system provides automatic punching, sealing, and waste discharge capabilities, solving sealing challenges for lidless containers. The space-efficient design enables single or multiple box sealing (1, 2, or 4 boxes simultaneously) to enhance production efficiency.

• Six-out-one production capability
• Production speed: 1000-1200 boxes/hour
• Program-controlled operation for stability and reliability
• 7-inch color touch screen interface for easy monitoring
• Precision guide rail system for smooth operation
• Sealing diameter range: 30-250mm (customizable)
• Compatible with multiple film materials: plastic composite, aluminum foil, PP, PVC, PE, PET, PS
• Air pressure range: 4-8KG/CM²
• Temperature range: 0-300°C
• Power: 1000-2000W (220V)
• Stainless steel construction (304 grade)
• Package weight: 204kg (custom models may vary)
• Dimensions: 136×111×168cm (L×W×H)

• Requires proper grounding before operation
• Equipped with anti-pinch device and double-sided safety electronic grating
• Emergency stop button for immediate shutdown
• Regular lubrication of guide columns required
• Daily cleaning recommended, especially for conveyor belt and motor areas
• Professional service required for electrical maintenance

Payment Terms: 50% deposit upon contract signing, balance due after equipment inspection

Delivery Time: 7-10 days

Warranty: 1-year guarantee with lifetime service support
