304 Stainless Steel Automatic Bottle Sealing Machine 1000-1200 Boxes/Hour

Brand Name:	China Xingyuan
Model Number:	LD802
MOQ:	1
Price:	USD 2388-5888
Payment Terms:	L/C,D/A. D/P.T/T,Western Union,MoneyGram
Supply Ability:	3000 sets/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China Guangdong

Certification:

ISO 9001

Body Material:

304 Stainless Steel

Driving Mode:

Pneumatic

Working Press:

0.5Mpa~0.6Mpa

Power Consumption:

1.KW5-5KW

Customization:

Yes

Certificate:

CE ISO9001

Packaging Details:

Wooden Box

Highlight:

Stainless Steel Automatic Bottle Sealing Machine

1200 Boxes/Hour Bottle Sealing Machine

bottle sealing equipment 1200 Boxes/Hour

Product Description

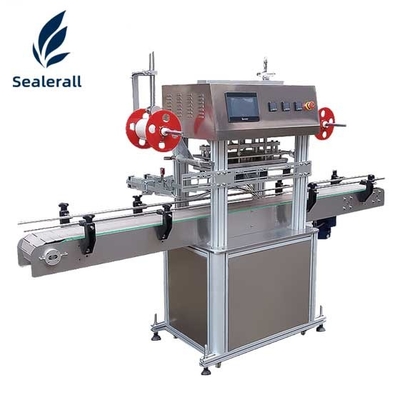

Fully Automatic Bottle Sealing Machine - Stainless Steel Construction

Product Overview

This PLUS series fully automatic sealing machine is designed for versatile sealing applications. Featuring quick-change molds, it accommodates various container shapes including cups, bowls, boxes, bottles, barrels, and cans. The machine offers flexible operation with either roll film or sheet film options, solving sealing challenges for containers without lids. Its space-saving design and multi-box sealing capability (1, 2, or 4 boxes simultaneously) significantly enhance production efficiency.

Machine Functions and Specifications

Six-out-one production configuration
Production speed: 1000-1200 boxes/hour
Production process: Manual box placement with automatic box entry, air pressure sealing, automatic waste discharge, and automatic box top
Safety features: Anti-pinch device with double-sided electronic grating
Program-controlled operation for stability and reliability
7-inch color touch screen interface for easy operation and real-time monitoring
Precision digital temperature control (±5°C) for optimal sealing
Precision guide rails for smooth operation and accurate positioning
Taiwanese photoelectric eye tracking system
Sealing diameter range: 30-250mm (customizable)
Compatible materials: Plastic composite film, aluminum foil, PP, PVC, PE, PET, PS
Sealing film size: 2-3mm larger than container opening for tight, attractive seals
Air pressure range: 4-8KG/CM²
Temperature range: 0-300°C
Power: 1000-2000W
Voltage: 220V
Stainless steel 304 construction
Package weight: ~204kg (custom models may vary)
Package dimensions: 136×111×168cm
Wooden crate packaging

Machine Configuration

No.	Component	Brand	Origin
1	Main Body	Stainless Steel 304	Guangzhou
2	Electric Switch	Shuangke	Nanjing
3	PLC	Homemade	Guangzhou
4	Display	7-inch Color Touch Screen	Guangzhou
5	Relay	Sanle	Zhejiang
6	Cylinder	AirTac	Taiwan
7	Temperature Control Meter	RKC	Domestic
8	Motor	Taili	Joint Venture
10	Solenoid Valve	AirTac	Taiwan

Operation and Safety Guidelines

Connect grounding wire before operation
Keep hands clear during operation - never insert hands while machine is powered
Use emergency stop button (red) for immediate shutdown
Power off before installing sealing film
For initial sealing, gradually increase temperature from low to high
Ensure machine is level on solid surface before operation
Regularly lubricate guide columns to minimize wear
Daily cleaning required, especially on conveyor belt and motor
Electrical box should only be accessed by qualified technicians

Payment and Delivery Terms

Payment: 50% deposit upon contract signing, balance due after equipment completion and inspection (on-site or via video).
Delivery: 7-10 days production lead time.
Warranty: 1-year guarantee with lifetime service support.
