Shrimp Sliders MAP Tray Sealing Machine High Productivity ISO9001

Brand Name:	China Xingyuan
Model Number:	LD801
MOQ:	1
Price:	7098
Payment Terms:	L/C,D/A,D/P,T/T,MoneyGram,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China, Guangdong.

Certification:

ISO 9001

Body Material:

304 Stainless Steel

Driving Mode:

Pneumatic

Working Press:

0.5Mpa~0.6Mpa

Power Consumption:

1.KW5-5KW

Customization:

Yes

Certificate:

CE ISO9001

Packaging Details:

Wooden Box

Highlight:

Shrimp Sliders MAP Tray Sealing Machine

Shrimp Sliders food tray sealing machine

ISO9001 MAP Tray Sealing Machine

Product Description

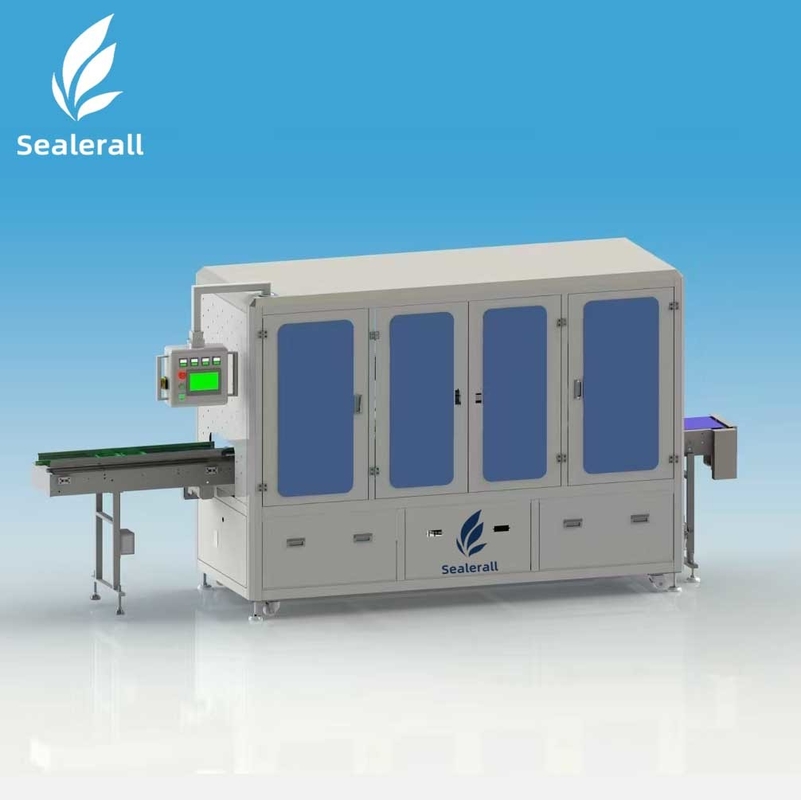

Shrimp Sliders MAP Tray Sealing Machine High Productivity ISO9001

Product Overview

The Shrimp Sliders MAP (Modified Atmosphere Packaging) Line is a fully automatic sealing machine designed for high-efficiency production. This advanced system features automatic hot-press sealing, conveying, and film cutting capabilities, processing six bottles simultaneously to maximize productivity while reducing labor requirements.

Key Features

High-speed production: 1200-1500 bottles per hour (speed varies by container specifications)
Automated process: bottle feeding, film sealing, and finished product delivery
Compatible with production line integration for unmanned operation
Delta PLC program control with 7-inch touch screen interface
Precision temperature control (±5°C) for optimal sealing results
Taiwan photoelectric eye tracking system
Customizable sealing for various container shapes (50-250mm diameter)
Works with multiple sealing materials: plastic composite film, aluminum foil, PP, PE, PET, PS

Technical Specifications

Parameter	Specification
Air Pressure Range	4-8KG/CM²
Temperature Range	0-300°C
Power Consumption	500-1000W
Voltage	220V/110V
Machine Dimensions	2500×1000×1500mm
Work Surface Height	830mm (customizable)
Construction Material	Stainless Steel
Packing Method	Wooden Frame

Standard Accessories

2 × 10A fuses
Instruction manual
Hexagonal wrench
Cross screwdriver
Paper tube

Safety & Operation Guidelines

Always connect grounding wire before operation
Keep hands clear of machine during operation
Use emergency stop button (red) when needed
Power off when installing sealing film
Gradually increase temperature for initial sealing
Ensure machine is level on solid surface
Regularly lubricate guide columns
Maintain daily cleaning, especially conveyor belt and motor
Contact authorized service for any malfunctions

Ordering & Delivery

Payment Terms	50% deposit upon contract signing, 50% balance after inspection
Production Lead Time	15-20 days
Warranty	1-year guarantee with lifetime service support
