Energy Efficient MAP Plastic Tray Sealing Machine For Fresh Fish Meat

Brand Name:	China Xingyuan
Model Number:	QXY-1919
MOQ:	1
Price:	6888-38888
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1200 sets/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China, Guangdong.

Certification:

ISO9001

Body Material:

304 Stainless Steel

Driving Mode:

Pneumatic

Working Press:

0.5Mpa~0.6Mpa

Power Consumption:

1.KW5-5KW

Customization:

Yes

Certificate:

CE ISO9001

Packaging Details:

Wooden Box

Highlight:

Energy Efficient Plastic Tray Sealing Machine

MAP Plastic Tray Sealing Machine

Fresh meat tray wrapping machine

Product Description

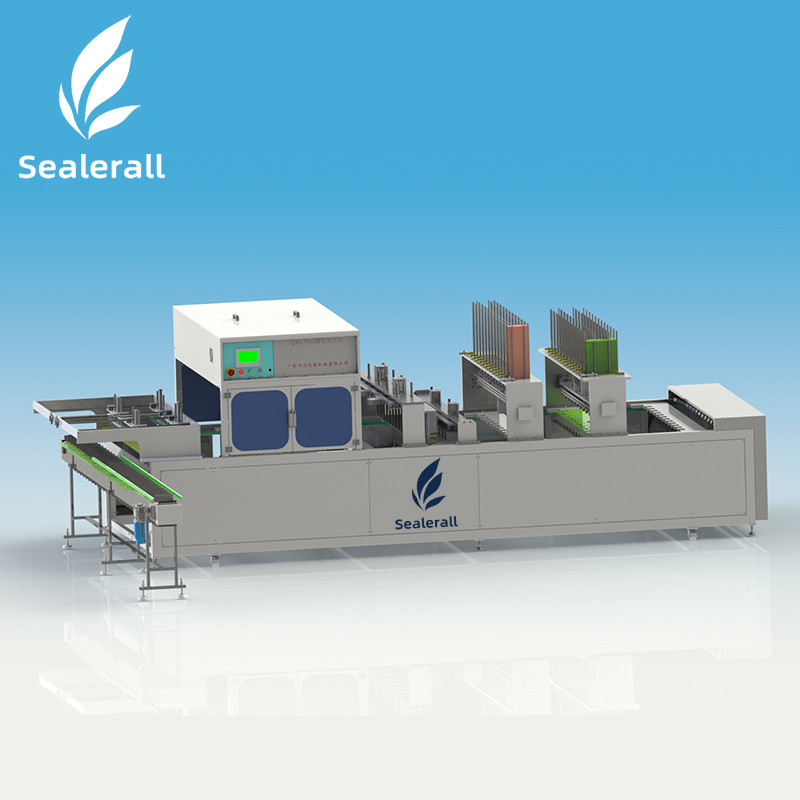

Plastic Box Packed Fresh Fish Meat Modified Atmosphere Packaging Machine

Product Overview

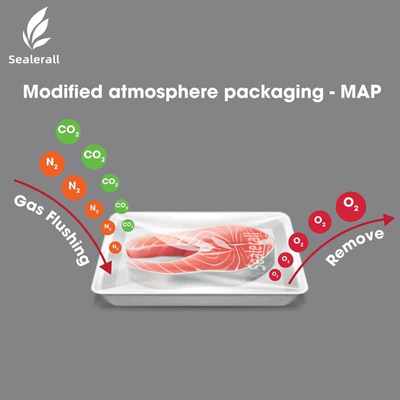

The Plastic Box Packed Fresh Fish Meat Modified Atmosphere Packaging Machine is designed for optimal freshness and quality preservation. This advanced technology utilizes modified atmosphere packaging (MAP) to extend shelf life while maintaining product quality and visual appeal. Ideal for seafood processors and distributors, this machine combines efficiency with superior performance.

Key Features

Superior freshness retention technology
User-friendly interface for easy operation
Energy-efficient performance
Compact design adaptable to various production environments

Technical Specifications

Parameter	Specification
Brand Model	QXY-1919 Modified atmosphere fresh-keeping chain plate sealing machine
Type	Continuous, fully automatic
Packing Capacity	4 boxes (maximum size: 20014080 mm)
Working Air Pressure	0.6-0.8 Mpa
Replacement Rate	≥99%
Power Supply	380V/50HZ 5KW
Shelf Life Extension	7-15 days (varies by product and storage conditions)
Gas Mixing	Two-gas mixing system
Control System	Mitsubishi PLC
Pneumatic Components	AirTac
Machine Casing	304 thickened stainless steel
Mold Material	Anodized aluminum alloy acid-resistant mold
Mixer	MOCON, Denmark
Power Air Source	0.5-0.8MPa
Warranty	One-year warranty for the whole machine
Machine Weight	1000 KG

Machine Functions and Configuration

Production capacity: 1200-1500 pieces/hour (4-box configuration)
Automated workflow: boxing, gas injection, sealing, date printing, and output
High-quality 304 stainless steel construction with dust-proof and rust-proof properties
Precision CNC machining for long-lasting, stable operation
Food-grade stainless steel chain for durability and easy cleaning
Sturdy steel frame construction with precision milling
Durable sealing mold with stainless steel and alumina components
Servo motor drive with precise temperature control (±1°C)
Taiwan photoelectric eye tracking for precise sealing alignment
Delta PLC control with user-friendly interface and fault alarm system
Compatible with various sealing materials (minimum 0.1mm thickness)

Electrical Components

The machine features high-quality components including Taiwan Weilun HMI, Delta PLC, AirTac solenoid valves, Schneider electrical components, Fuji temperature controllers, and Delta servo motors.

After-Sales Service

We provide one-year free warranty and lifetime service. During warranty, we offer two free on-site services annually. Additional visits may incur travel and accommodation costs.

Payment and Delivery

Payment: 50% deposit upon contract signing, 50% balance after inspection.
Delivery: 20-25 days after order confirmation.
