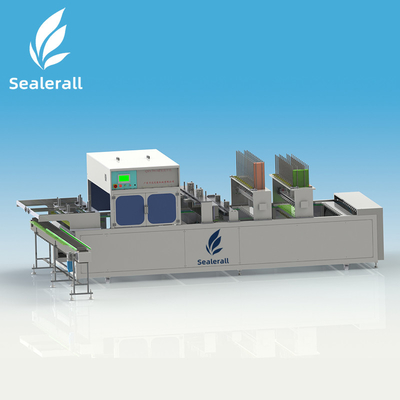

Multi Row Mushroom Tray Packing Machine Fresh Locking Map Sealing Machine

Brand Name:	China Xingyuan
MOQ:	1
Price:	USD 32888~64988
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000 sets/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China, Guangdong.

Certification:

ISO9001

Body Material:

304 Stainless Steel

Driving Mode:

Pneumatic

Working Press:

0.5Mpa~0.6Mpa

Power Consumption:

1.KW5-5KW

Customization:

Yes

Certificate:

CE ISO9001

Packaging Details:

Wooden Box

Highlight:

Multi Row Mushroom Tray Packing Machine

Fresh Locking Mushroom Tray Packing Machine

Fresh Locking Map Sealing Machine

Product Description

Mushroom Custom MAP Tray Sealing Machine Multi Head Scale Chain Plate Sealing Machine

This high-speed multi-row modified atmosphere fresh-locking chain plate sealing machine extends the shelf life of food in low-temperature refrigerated environments without preservatives. It supports vacuum sealing or fresh-keeping gas filling, with options for roll film or sheet film. Features include automatic boxing, gas replacement, sealing, date printing, and unloading. The secondary sealing ensures reliability while sealing four or more boxes simultaneously improves efficiency.

Technical Parameters

Brand Model	QXY-1919 Modified atmosphere fresh-keeping chain plate sealing machine
Type	Modified Atmosphere fresh-keeping sealing machine
Packing 2 boxes (maximum size)	30019080 (mm)
Packaging speed	Modified Atmosphere 4~5 times/min General packaging 5*6 times/min
Packing 4 boxes (maximum size)	22016080 (mm)
Working air pressure	0.6 Mpa
Replacement Rate	≥99%
Rated Power	220V/50HZ 3KW
Shelf Life	7-15 Days (Reference only, depends on product type, storage environment and workshop cleanliness)
Mixed Gas	Mixing of two gases
Program Control parts	Mitsubishi PLC
Pneumatic parts	AirTac
Machine casing	304t Thickened Stainless Steel
Mold Parts	Fine grinding of anodized aluminum alloy acid-resistant aluminum mold
Mixer	MOCON Denmark
Power Air Source	0.4~0.6MPa
Warranty	One year warranty for the whole machine
Machine weight	1000(KG)

Machine Functions and Configuration

One out of four production capability
Production speed: 1200-1500 pieces/hour (one out of four configuration)
Automated workflow: boxing, gas injection, hot pressing, date printing, and finished product output
Premium 304 stainless steel construction with food-grade 2B plate and brushed finish
Hand-polished surfaces with rounded edges for safety and quality
CNC-machined components for precision and durability
Food-grade 304 stainless steel chain, resistant to acids and alkalis
Sturdy steel frame construction with gantry milling for stability
Durable sealing mold with stainless steel + alumina composition
Servo motor drive with precise temperature control (±1°C)
Taiwan photoelectric eye tracking for pattern alignment
Delta PLC with user-friendly interface and fault alarms
Compatible with various sealing materials (minimum 0.1MM thickness)

Technical Specifications

Air pressure range: 4-8KG/CM²
Temperature range: 0-250°C
Power: 5000-8000W
Voltage: 380V 50HZ
Customizable machine size
Packed in wooden cases

Electrical Components

Human-machine interface: Taiwan Weilun
PLC: Taiwan Delta
Solenoid valve: Taiwan AirTac
Air switch: France Schneider
Master cylinder: Taiwan AirTac
Temperature control: Japan Fuji
Drive motor: Taiwan servo
304 stainless steel frame (3.0mm thickness)
6061 aluminum alloy sealing mold

Customization Options

We customize equipment based on packaging tray specifications and production requirements. Modified atmosphere packaging preserves food's original qualities while extending shelf life when combined with proper food technology.

Applications

Suitable for Packaging:

Fast food lunch boxes, fresh meat, seafood, cooked food, pickles, and more.

Ideal for:

Food processing plants, supermarkets, restaurants, bakeries, and distribution centers handling fresh and processed foods.

Operation Principles

Modified Atmosphere Packaging:

Replaces box air with fresh-keeping gas through controlled cylinder movements for mold operation, gas filling, sealing, and film cutting.

Standard Sealing:

Simple mold closure for sealing and film cutting.

Gas Mixing Options

Custom gas mixers available for different food types. Optional upgrade to ternary gas mixer available.

Safety Guidelines

Always connect grounding wire before use
Keep hands clear during operation
Use emergency stop button when needed
Power off when installing sealing film
Gradually increase temperature for first-time use
Ensure level machine placement
Regularly lubricate guide columns
Maintain daily cleanliness
Contact professionals for repairs

Core Components

Control System:

Mitsubishi PLC
Weiluntong touch screen
Mitsubishi temperature control
Omron relays

Pneumatic System:

Taiwan AirTac cylinders and valves
Denmark MOCON mixing system

Mold Construction:

Sandblasted anodized aluminum alloy with Teflon-coated hot plates.

Ordering Information

Payment Terms:

50% deposit upon contract signing, remaining 50% after inspection (on-site or via video).

Delivery Time:

20-25 days

Warranty:

1-year machine warranty with lifetime service support.
