Bamboo Shoots MAP Modified Atmosphere Packaging Machines 500W-1000W

Bamboo Shoots MAP Modified Atmosphere Packaging Machines 500W-1000W

Bamboo Shoots MAP Modified Atmosphere Packaging Machines 500W-1000W

Brand Name: China Xingyuan
Model Number: LD801
MOQ: 1
Price: USD 7098 -9888
Payment Terms: L/C,D/A,D/P,T/T,MoneyGram,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China, Guangdong.
Certification:
ISO 9001
Body Material:
304 Stainless Steel
Driving Mode:
Pneumatic
Working Press:
0.5Mpa~0.6Mpa
Power Consumption:
1.KW5-5KW
Customization:
Yes
Certificate:
CE ISO9001
Packaging Details:
Wooden Box
Highlight:

MAP Modified Atmosphere Packaging Machines

,

Bamboo Shoots MAP Packaging Machines

,

500W Modified Atmosphere Packaging Machines

Product Description
Eco Friendly MAP Tray Sealing Machine Pneumatic 500-1000W 110V
Bamboo Shoots MAP Modified Atmosphere Packaging Line
This advanced full-automatic sealing machine features roll film sealing with automatic hot pressing, conveying, and film cutting. Capable of sealing six bottles simultaneously, it significantly reduces labor costs while enhancing production efficiency.
Machine Specifications
  • Capacity: Six bottles per cycle
  • Production speed: 1200-1500 bottles/hour (varies by container specifications)
  • Automated process: bottle feeding, film sealing, and finished product delivery
  • Compatible with production line integration for unmanned operation
  • Delta PLC program control with 7-inch touch screen interface
  • Precision digital temperature control (±5°C variation)
  • Taiwan photoelectric eye tracking system
  • Sealing diameter: 50-250mm (custom shapes available)
  • Sealing film extends 2-3mm beyond bottle thread
  • Compatible with various materials: plastic composite film, aluminum foil, PP, PE, PET, PS
Technical Parameter Specification
Air Pressure Range 4-8KG/CM²
Temperature Range 0-300°C
Power 500-1000W
Voltage 220V/110V
Machine Dimensions 2500×1000×1500mm
Work Surface Height 830mm (customizable)
Construction Stainless steel
Packing Wooden frame
Standard Accessories
2×10A fuses, instruction manual, hexagonal wrench, cross screwdriver, paper tube
Operation Guidelines
  • Connect grounding wire before operation
  • Keep hands clear during operation
  • Use emergency stop button for immediate shutdown
  • Power off when installing sealing film
  • Gradually increase temperature for initial use
  • Ensure machine is level on solid surface
  • Regularly lubricate guide columns
  • Daily cleaning of conveyor belt and motor
  • Contact authorized service for electrical issues

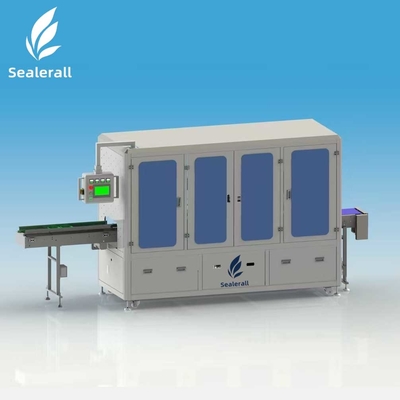

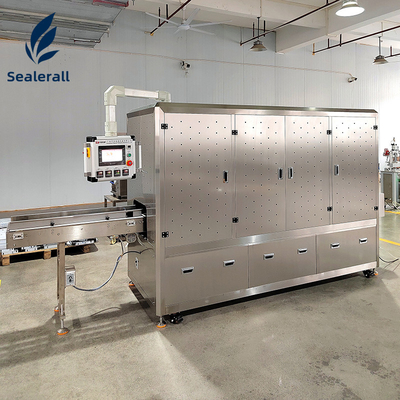

Bamboo Shoots MAP Modified Atmosphere Packaging Machines 500W-1000W 0 Bamboo Shoots MAP Modified Atmosphere Packaging Machines 500W-1000W 1
Commercial Terms
Payment Method
50% deposit upon contract signing, remaining 50% payable after equipment completion and inspection (on-site or via video confirmation).
Delivery Period
15-20 days
Warranty
1-year guarantee with lifetime service support
