MAP Tray Sealing Machine
Created with Pixso.

ISO9001 Stainless Steel MAP Tray Sealing Machine 0.5Mpa-0.6Mpa Pneumatic

ISO9001 Stainless Steel MAP Tray Sealing Machine 0.5Mpa-0.6Mpa Pneumatic

ISO9001 Stainless Steel MAP Tray Sealing Machine 0.5Mpa-0.6Mpa Pneumatic

Brand Name: China Xingyuan
Model Number: LD801
MOQ: 1
Price: USD68888-98888
Payment Terms: L/C,D/A,D/P,T/T,MoneyGram,Western Union
Supply Ability: 1200 sets/Month
Detail Information
Product Description
Detail Information
Place of Origin:
China, Guangdong.
Certification:
ISO 9001
Body Material:
304 Stainless Steel
Driving Mode:
Pneumatic
Working Press:
0.5Mpa~0.6Mpa
Power Consumption:
1.KW5-5KW
Customization:
Yes
Certificate:
CE ISO9001
Packaging Details:
Wooden Box
Highlight:

Stainless Steel MAP Tray Sealing Machine

,

ISO9001 MAP Tray Sealing Machine

,

0.5Mpa map vacuum sealer

Product Description
Map Advanced Plastic Container Sealing Machine Automatic Tray Packing Machine
Fresh Meat Sealing Machine Modified Atmosphere Packaging Machine

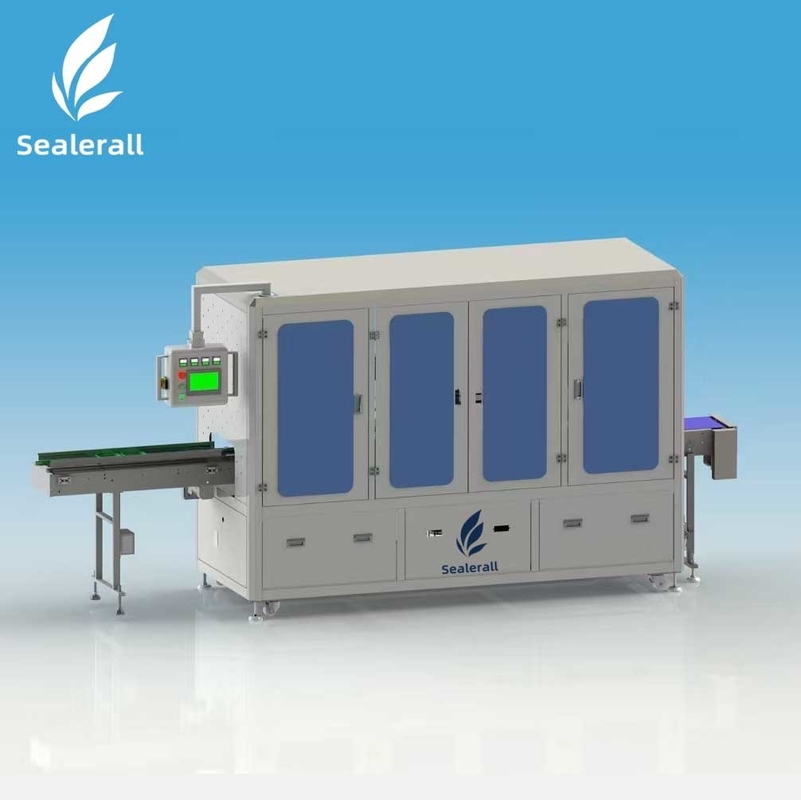

This fully automatic sealing machine is designed for efficient production line operation. It features automatic hot press sealing, conveying, and film cutting, capable of sealing six bottles simultaneously to maximize productivity and reduce labor costs.
Machine Features and Specifications
  • Capacity: Six bottles per cycle
  • Production speed: 1200-1500 bottles/hour (varies by container specifications)
  • Automated process: bottle feeding, film rolling/sealing, and finished product delivery
  • Compatible with production line integration for unmanned operation
  • Delta PLC control system with 7-inch touch screen interface
  • Precision digital temperature control (±5°C) for optimal sealing
  • Taiwanese photoelectric eye tracking system
  • Customizable sealing for diameters 50-250mm (square/rectangular available)
Technical Parameter Specification
Sealing Material Compatibility Plastic composite film, aluminum foil, PP, PE, PET, PS
Air Pressure Range 4-8KG/CM²
Temperature Range 0-300°C
Power Consumption 500-1000W
Voltage 220V/110V
Machine Dimensions 2500×1000×1500mm
Work Surface Height 830mm (customizable)
Construction Material Stainless steel
Safety and Maintenance Guidelines
  • Always connect grounding wire before operation
  • Keep hands clear during operation - never insert into moving parts
  • Use emergency stop button (red) for immediate shutdown
  • Power off before installing sealing film
  • For first-time sealing, gradually increase temperature from low to high
  • Ensure machine is level on solid surface
  • Regularly lubricate guide columns to minimize wear
  • Daily cleaning of conveyor belt and motor areas
  • Only qualified technicians should service electrical components
ISO9001 Stainless Steel MAP Tray Sealing Machine 0.5Mpa-0.6Mpa Pneumatic 0 ISO9001 Stainless Steel MAP Tray Sealing Machine 0.5Mpa-0.6Mpa Pneumatic 1
Ordering and Service Information
Payment Terms: 50% deposit upon contract signing, balance due after inspection (on-site or via video confirmation)
Production Lead Time: 15-20 days
Warranty: 1-year guarantee with lifetime service support
