MAP Tray Sealing Machine
Created with Pixso.

High Speed MAP Tray Sealing Machine Rice Cake Sealing Machine Fresh Keeping

High Speed MAP Tray Sealing Machine Rice Cake Sealing Machine Fresh Keeping

Brand Name: China Xingyuan
Model Number: LD641
MOQ: 1
Price: USD 12888~14988
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000 sets/Month
Detail Information
Place of Origin:
China, Guangdong.
Certification:
ISO9001
Body Material:
304 Stainless Steel
Driving Mode:
Pneumatic
Working Press:
0.5Mpa~0.6Mpa
Power Consumption:
1.KW5-5KW
Customization:
Yes
Certificate:
CE ISO9001
Packaging Details:
Wooden Box
Highlight:

MAP Rice cake sealing machine

,

High Speed Map Tray Sealing Machine

,

fresh keeping cake sealing machine

Product Description
MAP Rice Cake Sealing Machine For Packing High Speed Standard Long Life
Product Overview

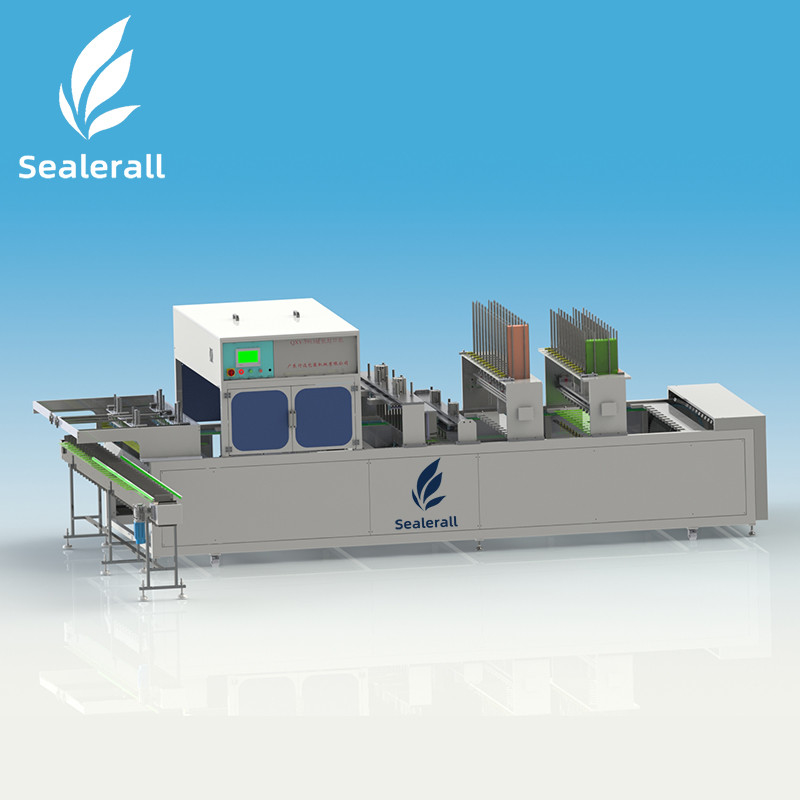

This high-speed multi-row modified atmosphere fresh-locking chain plate sealing machine extends the shelf life of food in low-temperature refrigerated environments without preservatives. It supports vacuum or fresh-keeping gas filling, accepts roll or sheet film, and features automatic boxing, gas replacement, sealing, date printing, and unloading. Capable of sealing four or more boxes simultaneously, it significantly improves production efficiency while ensuring food freshness.
Technical Parameters
Brand Model QXY-1919 Modified atmosphere fresh-keeping chain plate sealing machine
Type Modified Atmosphere fresh-keeping sealing machine
Packing 2 boxes (maximum size) 300*190*80 (mm)
Packaging speed Modified Atmosphere 4~5 times/min
General packaging 5*6 times/min
Packing 4 boxes (maximum size) 220*160*80 (mm)
Working air pressure 0.6 Mpa
Replacement Rate ≥99%
Rated Power 220V/50HZ 3KW
Shelf Life 7-15 Days (Depending on product type, storage environment and workshop cleanliness)
Mixed Gas Mixing of two gases
High Speed MAP Tray Sealing Machine Rice Cake Sealing Machine Fresh Keeping 0 High Speed MAP Tray Sealing Machine Rice Cake Sealing Machine Fresh Keeping 1
Machine Functions and Configuration
  • Production speed: 1200-1500 pieces/hour (one out of four configuration)
  • Workflow: Automatic boxing, fresh-keeping gas injection, hot pressing/sealing, date printing, and finished product output
  • 304 stainless steel construction with food-grade industrial 2B plate, dust-proof, rust-proof, acid/alkali resistant
  • Hand-polished with fine workmanship, no sharp corners
  • CNC machined parts for precision and long-term smooth operation
  • Food-grade stainless steel 304 chain, water-washable and durable
  • Thick steel frame structure, plane-milled for stability
  • Stainless steel + alumina sealing mold for durability and fast heat conduction
  • Servo motor drive with ±1°C temperature control for reliable sealing
  • Taiwan photoelectric eye tracking for pattern alignment
  • Delta PLC control with user interface and fault alarm
Electrical Accessories
Human-machine interface: Taiwan Weilun | PLC: Taiwan Delta | Solenoid valve: Taiwan AirTac | Air switch: France Schneider | Temperature control: Japan Fuji | Drive motor: Taiwan servo | Frequency converter: Taiwan Delta
Non-Standard Customization
Custom equipment available based on packaging tray specifications and production requirements. Modified atmosphere packaging maintains food quality and extends shelf life when combined with proper food technology.
Applicable Packaging & Occasions
Suitable for fast food lunch boxes, fresh/chilled meats, seafood, prepared foods, and more. Ideal for food processing plants, supermarkets, restaurants, and distribution centers.
Working Principle
Replaces box air with fresh-keeping gas via automated cylinder-controlled process: lower mold positioning, upper/lower mold closure, gas replacement, sealing, film cutting, and ejection. Standard sealing skips gas replacement steps.
Precautions for Use
  • Always connect grounding wire before use
  • Keep hands clear during operation - use emergency stop button if needed
  • Power off when installing sealing film
  • Gradually increase temperature for first-time sealing
  • Ensure level installation on solid surface
  • Regular maintenance: grease guide columns, clean conveyor/motor
  • Contact professionals for electrical issues
Payment & Delivery
50% deposit upon contract signing, balance after inspection. Delivery within 20-25 days with 1-year warranty and lifetime service.
