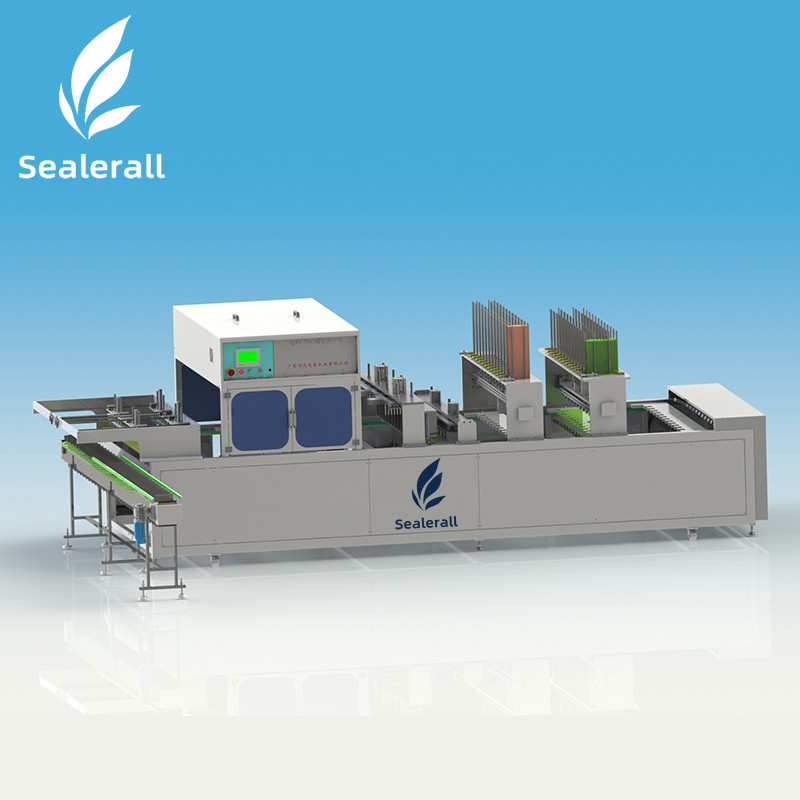

220V 3KW MAP Packaging Machine With 304 Stainless Steel Body Smart Control

Brand Name:	China Xingyuan
Model Number:	QXY-1919
MOQ:	1
Price:	USD 12888~14988
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000 sets/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China, Guangdong.

Certification:

ISO9001

Body Material:

304 Stainless Steel

Driving Mode:

Pneumatic

Working Press:

0.5Mpa~0.6Mpa

Power Consumption:

1.KW5-5KW

Customization:

Yes

Certificate:

CE ISO9001

Packaging Details:

Wooden Box

Highlight:

Smart Control MAP Packaging Machine

Smart Control map sealing machine

MAP Packaging And Sealing Machine

Product Description

220V Packaging And Sealing Machine MAP Integrated With Smart Control

This high-speed multi-row modified atmosphere fresh-locking chain plate sealing machine extends the shelf life of food in low-temperature refrigerated environments without preservatives. It supports vacuum or fresh-keeping gas filling, with optional roll or sheet film sealing. Features include automatic boxing, gas replacement, reliable secondary sealing, automatic unloading, date printing, and simultaneous sealing of four or more boxes, significantly improving production efficiency while ensuring food freshness.

Technical Parameters

Brand Model	QXY-1919 Modified atmosphere fresh-keeping chain plate sealing machine
Type	Modified Atmosphere fresh-keeping sealing machine
Packing 2 boxes (maximum size)	30019080 (mm)
Packaging speed	Modified Atmosphere 4~5 times/min General packaging 5*6 times/min
Packing 4 boxes (maximum size)	22016080 (mm)
Working air pressure	0.6 Mpa
Replacement Rate	≥99%
Rated Power	220V/50HZ 3KW
Shelf Life	7-15 Days (Reference only, depends on product type, storage environment and workshop cleanliness)
Mixed Gas	Mixing of two gases

Machine Functions and Configuration

One out of four operation
Production speed: 1200-1500 pieces/hour (one out of four configuration)
Workflow: Automatic boxing, fresh-keeping gas injection, automatic hot pressing and sealing, date printing, and finished product output
High-quality stainless steel 304 construction with food-grade industrial 2B plate, dust-proof, rust-proof, acid-resistant and alkali-resistant
Hand-polished finish with small chassis interface and no sharp corners
CNC machine-added parts for precision and long-term smooth operation
Food-grade stainless steel 304 chain, water-washable and durable
Thick steel structure frame with gantry milling machine planing for stability
Stainless steel + alumina sealing mold for durability and fast heat conduction
Servo motor drive with digital temperature controller (±1°C accuracy)
Taiwan photoelectric eye tracking for precise sealing pattern alignment
Delta PLC program control with human-machine interface and fault alarm
Compatible with various sealing materials (plastic composite heat-sealing film or aluminum foil composite film, ≥0.1MM thickness)

Electrical Accessories

Human-machine interface: Taiwan Weilun
PLC: Taiwan Delta
Solenoid valve: Taiwan AirTac
Air switch: France Schneider
Master cylinder: Taiwan AirTac
Switch power supply: Taiwan Delta
Temperature control solid state: South Korea
Drive motor: Taiwan servo
Temperature control meter: Japan Fuji
Repeater: France Schneider
Circuit breaker: France Schneider
Frequency converter: Taiwan Delta

Non-Standard Customization

We customize equipment according to packaging tray specifications and production requirements. Modified atmosphere packaging maintains food's original taste, color, shape and nutrition while extending shelf life when combined with proper food technology.

Applicable Packaging

Fast food lunch boxes, fresh poultry and livestock meat, chilled meat, seafood, cooked food, pickles, etc.

Working Principle

Modified atmosphere packaging replaces box air with fresh-keeping gas. The electrical control system manages cylinder operations for mold movement, gas replacement, sealing, and film cutting. Ordinary sealing involves simple mold closing and film cutting.

Mixing Ratio

Gas mixers with fixed ratios provided according to food characteristics. Upgrade to ternary gas mixer available at additional cost.

Precautions for Use

Connect grounding wire before use
Keep hands clear during operation
Use emergency stop button when needed
Power off when installing sealing film
Gradually increase temperature for first-time sealing
Ensure machine is level on solid surface
Regularly grease guide columns
Daily cleaning, especially conveyor belt and motor
Contact authorized service for malfunctions

Main Configuration

Electronic Control and Program Control:

PLC: Mitsubishi
Touch screen: Weiluntong
Temperature control: Mitsubishi module
Relay: Omron

Pneumatic Part:

Cylinder: Taiwan AirTac
Solenoid valve: Taiwan AirTac

Other Components:

Mixing system: Denmark MOCON
Mold part: Sandblasted anodized anti-rust aluminum alloy mold with Teflon-coated hot plate

Payment Method

50% deposit after contract signing, remaining 50% payable after on-site or video inspection confirms equipment completion and quality.

Delivery Period

20-25 days

Warranty Policy

1-year machine warranty with lifetime service.
