304 Stainless Steel Vertical MAP Packaging Machine Fresh Keeping Easy To Operate

Brand Name:	China Xingyuan
Model Number:	LD641
MOQ:	1
Price:	USD 8888~10888
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000 sets/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China, Guangdong.

Certification:

ISO9001

Body Material:

304 Stainless Steel

Driving Mode:

Pneumatic

Working Press:

0.5Mpa~0.6Mpa

Power Consumption:

1.KW5-5KW

Customization:

Yes

Certificate:

CE ISO9001

Packaging Details:

Wooden Box

Highlight:

MAP Packaging Machine Fresh Keeping

Easy To Operate MAP Packaging Machine

MAP Packaging equipment Fresh Keeping

Product Description

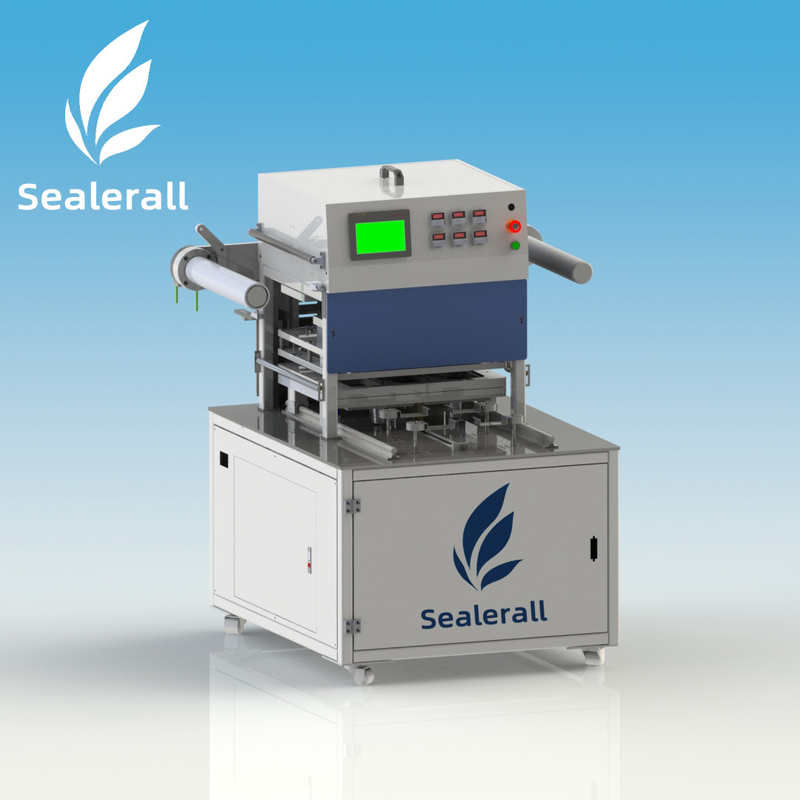

Vertical Modified Atmosphere Packaging Machine 304 Easy To Operate

This high-speed multi-row modified atmosphere fresh-locking chain plate sealing machine extends food shelf life in low-temperature refrigerated environments without preservatives. It offers vacuum or fresh-keeping gas filling options with roll or sheet film sealing. Features include automatic boxing, gas replacement, reliable secondary sealing, date printing, and simultaneous sealing of four or more boxes for enhanced production efficiency.

Technical Parameters

Brand Model	LD641 Vertical Modified Atmosphere fresh-keeping sealing machine	Type	Modified Atmosphere fresh-keeping sealing machine
Packing 2 boxes (maximum size)	30019080 (mm)	Packaging speed	Modified Atmosphere 4~5 times/min General packaging 5*6 times/min
Packing 4 boxes (maximum size)	22016080 (mm)	Working air pressure	0.6 Mpa
Replacement Rate	≥99%	Rated Power	220V/50HZ 3KW
Shelf Life	7-15 Days (Reference only, depends on product type, storage environment and workshop cleanliness)	Mixed Gas	Mixing of two gases
Program Control parts	Mitsubishi PLC	Pneumatic parts	AirTac
Machine casing	304t Thickened Stainless Steel	Mold Parts	Fine grinding of anodized aluminum alloy acid-resistant aluminum mold
Mixer	MOCON Denmark	Power Air Source	0.4~0.6MPa
Warranty	One year warranty for the whole machine	Machine weight	240(KG)

Machine Functions and Configuration

Production speed: 1200-1500 pieces/hour (four boxes simultaneously)
Automated workflow: boxing, gas injection, hot pressing, date printing, and finished product output
Premium 304 stainless steel construction with food-grade 2B plate and brushed finish
Hand-polished surfaces with no sharp corners for safety and durability
CNC-machined components for precision and long-term smooth operation
Food-grade 304 stainless steel chain, water-washable and deformation-resistant
Heavy-duty steel frame with gantry milling for stability
Stainless steel + alumina sealing mold for rust-proof performance
Servo motor drive with ±1°C digital temperature control
Taiwan photoelectric eye tracking for precise pattern alignment
Delta PLC with touchscreen interface and fault alarm system
Compatible with various sealing materials (0.1MM minimum thickness)

Electrical Accessories

Human-machine interface: Taiwan Weilun
PLC: Taiwan Delta
Solenoid valve: Taiwan AirTac
Air switch: France Schneider
Temperature control: Japan Fuji
Drive motor: Taiwan servo

Non-Standard Customization

We customize equipment based on packaging tray specifications and production requirements. Modified atmosphere packaging preserves food's original taste, color, and nutrition while extending shelf life.

Applications

Packaging Types:

Fast food lunch boxes
Fresh poultry, meat, seafood
Cooked food and pickles

Usage Scenarios:

Food processing plants and distribution centers
Supermarket fresh food operations
Restaurants and bakeries

Working Principle

The machine replaces box air with fresh-keeping gas, controlled by an electrical system that manages mold movement, gas filling, sealing, and film cutting. After deflation, molds reset to complete the cycle.

Safety Precautions

Always connect grounding wire before use
Keep hands clear during operation - use emergency stop button if needed
Power off when installing sealing film
Gradually increase temperature for first-time sealing
Maintain level machine placement
Regular lubrication and cleaning required

Order Information

Payment:

50% deposit upon contract signing, 50% balance after on-site or video inspection

Delivery:

20-25 days

Warranty:

1-year machine warranty with lifetime service
