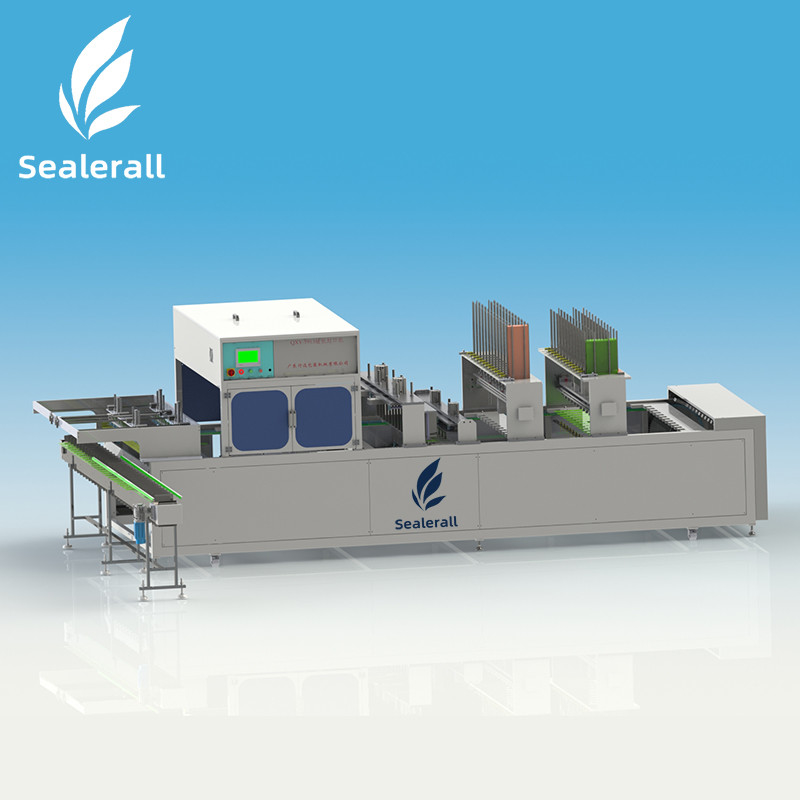

Fresh Keeping Modified Atmosphere Packaging Machine 3KW 500KG

Brand Name:	China Xingyuan
Model Number:	LD672-CA
MOQ:	1
Price:	18888
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China, Guangdong.

Certification:

ISO9001

Body Material:

304 Stainless Steel

Driving Mode:

Pneumatic

Working Press:

0.5Mpa~0.6Mpa

Power Consumption:

1.KW5-5KW

Customization:

Yes

Certificate:

CE ISO9001

Packaging Details:

Wooden Box

Highlight:

Fresh Keeping Modified Atmosphere Packaging Machine

Fresh Keeping map sealing machine

3KW Modified Atmosphere Packaging Machine

Product Description

Fresh Keeping Modified Atmosphere Packaging Machine High Safety Level For Chicken

Whole Chicken Modified Atmosphere Packaging Line

Product Overview

This disc rotary modified atmosphere fresh-keeping sealing machine is designed to inject fresh-keeping gases in precise proportions to extend food shelf life in refrigerated environments. The automated system features roll film sealing, automatic cup/box topping, and can seal multiple containers simultaneously (2, 4, or more boxes at once) for improved production efficiency.

Technical Parameters

Model	LD672-CA Disk rotary type Modified Atmosphere Fresh-keeping Sealing Machine
Type	Modified Atmosphere Fresh-keeping Sealing Machine
Replacement Rate	≥99%
Rated Power	220V/50HZ 3KW
Shelf Life	7-15 Days (varies by product type, storage environment, and workshop cleanliness)
Mixed Gas	5% CO₂, 5% O₂, 90% N₂
Program Control	Mitsubishi PLC
Pneumatic Parts	AirTac
Machine Casing	304 Thickened Stainless steel
Mold Parts	Anodized aluminum alloy acid-resistant mold
Mixer	MOCON Denmark
Power Air Source	0.4~0.6MPa
Warranty	One year warranty for the whole machine
Machine weight	500KG

Key Features and Configurations

Interchangeable molds compatible with cups, bowls, boxes, bottles, barrels and cans of various shapes/sizes
Production speed: 500-600 boxes/hour with manual box placement and automated gas injection, sealing, and date printing
Production line integration capability for unmanned operation
Taiwan PLC program control with touch screen interface for stable operation
Digital display temperature control (±5°C) for consistent sealing
Fault alarm and temperature alarm systems for quality assurance
Taiwan photoelectric eye tracking for precision operation
Compatible with various sealing materials including composite PP, PE, PET, PS, and aluminum foil
Adjustable temperature range: room temperature to 300°C
Customizable voltage options (standard 110V or other voltages)
Stainless steel 304# frame with food-grade finish for durability and hygiene
High-precision anodized aluminum alloy sealing system for corrosion resistance

Main Components

Operation screen: Taiwan Weiluntong touch screen
PLC: Delta PLC
Frequency Converter: Delta
Motor: Taili motor
Divider: Lianrui divider
Cylinder: Taiwan Yadeke cylinder
Solid state: Taiwan Yangming
Power supply: Delta
Relay: France Schneider
Mold assembly: Aluminum alloy oxidation
Disc assembly: Aluminum alloy oxidation

Payment and Delivery

Payment Method: 50% deposit upon contract signing, remaining 50% after equipment inspection (on-site or via video)
Delivery Period: 10-15 days
Warranty Policy: 1-year warranty with lifetime service support
