Electric Cooked Pork Automatic Tray Sealing Machine Pneumatic Map Machine Packaging

Brand Name:	China Xingyuan
MOQ:	1
Price:	1288-1588
Payment Terms:	L/C,D/A. D/P.T/T,Western Union,MoneyGram
Supply Ability:	3000 sets/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China, Guangdong.

Certification:

ISO 9001

Body Material:

304 Stainless Steel

Driving Mode:

Pneumatic

Working Press:

0.5Mpa~0.6Mpa

Power Consumption:

1.KW5-5KW

Customization:

Yes

Certificate:

CE ISO9001

Packaging Details:

Wooden Box

Highlight:

Pneumatic Map Machine Packaging

Cooked Pork Automatic Tray Sealing Machine

Cooked Pork Map Machine Packaging

Product Description

Electric Cooked Pork Automatic Tray Sealing Machine Packaging Sealer Machine

Cooked Pork Modified Atmosphere Packaging Machine

Product Overview

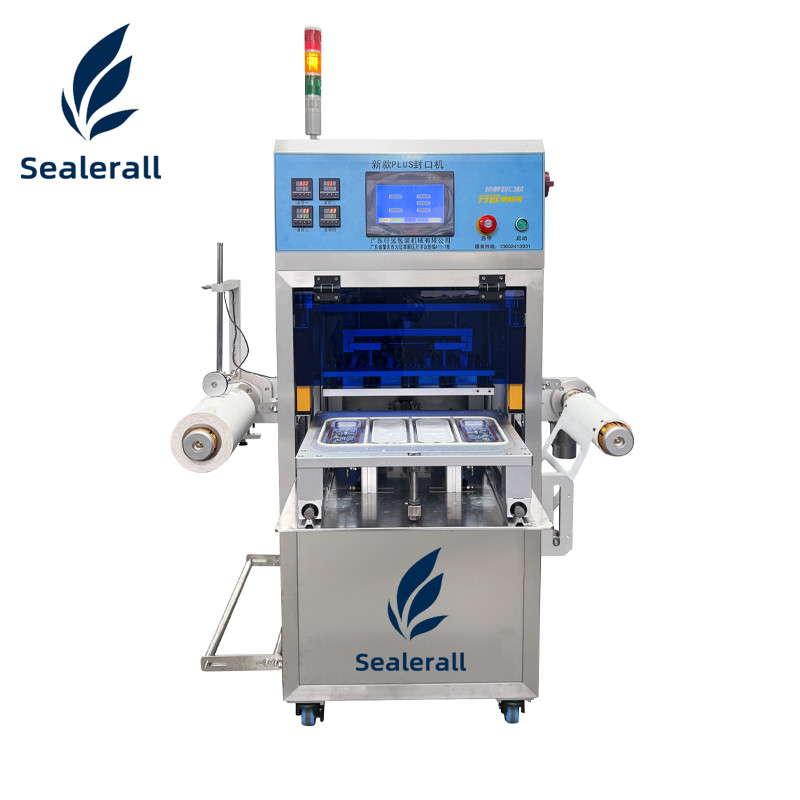

This desktop fully automatic sealing machine is designed for various container shapes including cups, bowls, boxes, bottles, barrels, and jars. Available with minimum order of one unit, it offers cost-effective operation with attractive sealing results. Compatible with both roll film and sheet film options, the machine features automatic punching, sealing, and waste discharge functions. Capable of sealing multiple containers simultaneously (1, 2, or 4 at a time) to maximize production efficiency.

Machine Functions and Configuration

One out of Six operation mode
Production speed: 1000-1200 boxes/hour
Production process: Manual box placement with automatic box entry, air pressure sealing, automatic waste discharge
Program-controlled operation for stability and reliability
4.3-inch color touch screen interface for easy operation and real-time monitoring
Digital display temperature control (±5°C accuracy)
Precision guide rail system for smooth operation
Taiwan photoelectric eye tracking system
Customizable sealing diameter: 30-250mm
Compatible with various sealing materials: plastic composite film, aluminum foil, PP, PVC, PE, PET, PS
Sealing film size 2-3mm larger than container opening for tight seal
Air pressure range: 4-8KG/CM²
Temperature range: 0-300°C
Power: 1000-2000W
Voltage: 220V
Stainless steel construction
Net weight: approximately 100kg (custom models may vary)
Package dimensions: 156×101×85cm (wooden box packaging)

Main Configuration

NO.	Name	Brand	Origin
1	Main Body	Stainless Steel 304	Guangzhou
2	Electric Switch	Shuangke	Nanjing
3	PLC	Homemade	Guangzhou
4	Display	4.3-inch Color Touch Screen	Guangzhou
5	Relay	Sanle	Zhejiang
6	Cylinder	AirTac	Taiwan
7	Temperature Control Meter	RKC	Domestic
8	Motor	Taili	Joint Venture
10	Solenoid Valve	AirTac	Taiwan

Precautions for Use

Connect grounding wire before operation
Keep hands clear of machine during operation
Use emergency stop button (red) when needed
Power off when installing sealing film
Gradually increase temperature for first-time sealing
Ensure machine is level on solid surface
Regularly lubricate guide columns
Daily cleaning of conveyor belt and motor
Contact authorized service for electrical issues

Payment Method

50% deposit upon contract signing, remaining 50% payable after equipment completion (verifiable via on-site inspection or video confirmation). Final payment released after quality inspection.

Delivery Period

7-10 days

Warranty Policy

1-year warranty with lifetime service support
