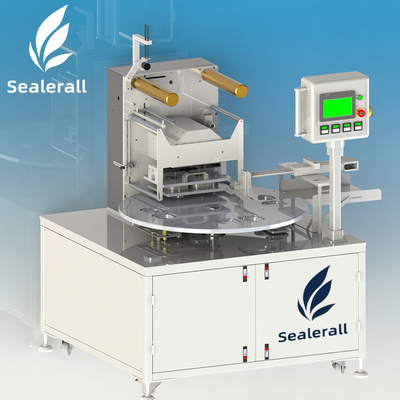

Aluminum Foil Automatic Tray Sealer Lunch Box Sealing Machine 1.5KW-5KW

This advanced PLUS fully automatic sealing machine is designed to meet diverse market demands. Featuring quick-change molds, it accommodates various container shapes including cups, bowls, boxes, bottles, and cans. The versatile design offers cost-effective solutions through multi-purpose functionality.

The machine supports both roll film and sheet film sealing options. Roll film operation includes automatic punching, sealing, and waste discharge, solving lidless container sealing challenges. Its space-efficient design enables single, double, or quadruple box sealing simultaneously, significantly enhancing production efficiency.

• Six-out-one production configuration
• Production speed: 1000-1200 boxes/hour
• Operation process: Manual box placement → Automatic box entry → Air pressure sealing → Automatic waste discharge → Automatic box top
• Safety features: Anti-pinch device with double-sided electronic grating
• Program-controlled operation for reliable performance
• User-friendly 7-inch color touch screen interface
• Precision digital temperature control (±5°C)
• High-precision guide rails for smooth operation
• Taiwanese photoelectric eye tracking system
• Sealing diameter range: 30-250mm (customizable)
• Compatible materials: Plastic composite film, aluminum foil composite film, PP, PVC, PE, PET, PS
• Sealing film size: 2-3mm larger than container opening
• Air pressure range: 4-8KG/CM²
• Temperature range: 0-300°C
• Power: 1000-2000W
• Voltage: 220V
• Construction: Stainless steel 304
• Package weight: ~204kg
• Dimensions: 136×111×168cm (L×W×H)
• Packing: Wooden crate

Includes instruction manual, hexagonal wrench, cross screwdriver, and paper tube.

• Ensure proper grounding before operation
• Keep hands clear during operation
• Use emergency stop button when necessary
• Power off during film installation
• Gradually increase temperature for initial sealing
• Level machine on solid surface
• Regularly lubricate guide columns
• Maintain daily cleaning, especially conveyor belt and motor
• Contact authorized service for electrical issues

Payment: 50% deposit upon contract signing, balance payable after equipment completion and inspection (on-site or via video confirmation).

Production Lead Time: 7-10 days

Warranty: 1-year guarantee with lifetime service support
