1000-2000W Jar Foil Sealing Machine Fast Speed Customization

Brand Name:	China Xingyuan
Model Number:	LD802
MOQ:	1
Price:	USD 2388-5888
Payment Terms:	L/C,D/A. D/P.T/T,Western Union,MoneyGram
Supply Ability:	3000 sets/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China Guangdong

Certification:

ISO 9001

Body Material:

304 Stainless Steel

Driving Mode:

Pneumatic

Working Press:

0.5Mpa~0.6Mpa

Power Consumption:

1.KW5-5KW

Customization:

Yes

Certificate:

CE ISO9001

Packaging Details:

Wooden Box

Highlight:

2000W Jar Foil Sealing Machine

Customization Jar Foil Sealing Machine

Fast Speed jar packing machine

Product Description

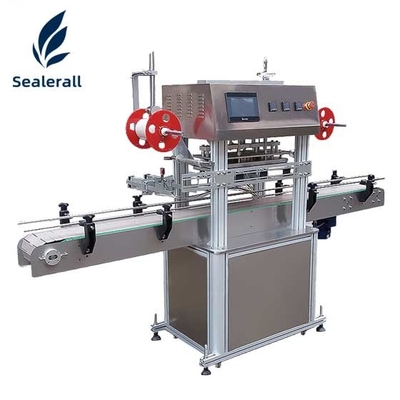

Flexible Jar Sealing Machine High Efficiency With Fast Sealing Speed

Product Overview

This advanced PLUS fully automatic sealing machine is designed for versatile sealing applications. Featuring quick-change molds, it accommodates various container shapes including cups, bowls, boxes, bottles, barrels, and cans. The machine offers flexible operation, cost savings, and multi-purpose functionality with options for either roll film or sheet film sealing.

Key Features

Six-out-one production configuration
High production speed: 1000-1200 boxes/hour
Automated process: manual box placement, automatic entry, air pressure sealing, waste discharge
Safety features: anti-pinch device, double-sided electronic grating
Program-controlled operation with stable performance
User-friendly 7-inch color touch screen interface
Precision digital temperature control (±5°C)
Customizable sealing diameter: 30-250mm
Compatible with various sealing materials (PP, PVC, PE, PET, PS, etc.)

Technical Specifications

Air Pressure: 4-8KG/CM²
Temperature Range: 0-300°C
Power: 1000-2000W
Voltage: 220V
Machine Weight: ~204kg (custom models may vary)
Packing Size: 136×111×168cm
Packing Method: Wooden box
Included Accessories: Instruction manual, hexagonal wrench, cross screwdriver, paper tube

Main Components

No.	Name	Brand	Origin
1	Main Body	Stainless Steel 304	Guangzhou
2	Electric Switch	Shuangke	Nanjing
3	PLC	Homemade	Guangzhou
4	Display	7-inch Color Touch Screen	Guangzhou
5	Relay	Sanle	Zhejiang
6	Cylinder	AirTac	Taiwan
7	Temperature Control Meter	RKC	Domestic
8	Motor	Taili	Joint Venture
10	Solenoid Valve	AirTac	Taiwan

Operation & Safety Guidelines

Always connect the grounding wire before operation
Keep hands clear during operation - never insert into machine while powered
Use emergency stop button (red) for immediate shutdown
Power off before installing sealing film
For first-time sealing, gradually increase temperature from low to high
Ensure machine is level on solid ground before operation
Regularly lubricate guide columns to minimize wear
Maintain daily cleaning, especially on conveyor belt and motor
Contact authorized service for any electrical issues

Ordering & Delivery

Payment Terms: 50% deposit upon contract signing, balance payable after inspection
Delivery Time: 7-10 days
Warranty: 1-year guarantee with lifetime service support
