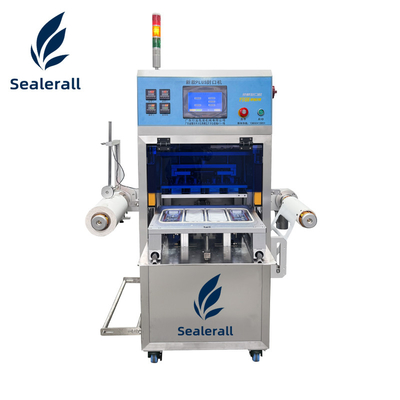

Fully Automation Bowl Sealing Machine 1000-1200 Boxes/Hour 220V

This PLUS fully automatic sealing machine is designed to meet diverse market demands. Featuring quick-change molds, it accommodates various container shapes including cups, bowls, boxes, bottles, barrels, and cans. The flexible design offers cost savings through multi-purpose functionality.

The machine works with plastic composite sealing films available in roll or sheet form. The roll film option enables automatic punching, sealing, and waste discharge, solving sealing challenges for lidless containers. Capable of sealing multiple boxes simultaneously (1, 2, or 4 boxes at once), it significantly enhances production efficiency while saving space.

• Six-out-one production configuration
• Production speed: 1000-1200 boxes/hour
• Production process: Manual box placement → Automatic box entry → Air pressure sealing → Automatic waste discharge → Automatic box top
• Advanced safety features: Anti-pinch device with double-sided electronic grating
• Program-controlled operation for stable, reliable performance
• User-friendly 7-inch color touch screen interface for real-time monitoring
• Precision digital temperature control (±5°C) for optimal sealing
• Precision guide rails ensure smooth operation and accurate positioning
• Taiwanese photoelectric eye tracking system
• Sealing diameter: Customizable from 30-250mm
• Compatible materials: Plastic composite film, aluminum foil composite film, PP, PVC, PE, PET, PS
• Sealing film size 2-3mm larger than container opening for tight, attractive seals
• Air pressure range: 4-8KG/CM²
• Temperature range: 0-300°C
• Power: 1000-2000W
• Voltage: 220V
• Construction: Stainless steel body
• Weight: Approximately 204kg (custom models may vary)
• Dimensions: 136×111×168cm (L×W×H)
• Packaging: Wooden crate
• Included accessories: Instruction manual, hexagonal wrench, cross screwdriver, paper tube

• Always connect the grounding wire before operation
• Never insert hands into the machine while powered on or in standby
• Use the red emergency stop button for immediate shutdown
• Power off the machine before installing sealing film
• For initial sealing, gradually increase temperature from low to high
• Ensure all four feet are level on solid ground before operation
• Regularly lubricate guide columns to minimize part wear
• Daily cleaning required, especially conveyor belt and motor areas
• Only authorized technicians should access electrical components

50% deposit upon contract signing, with remaining 50% due after on-site or video inspection confirms equipment completion and quality.

7-10 days

1-year guarantee with lifetime service support
