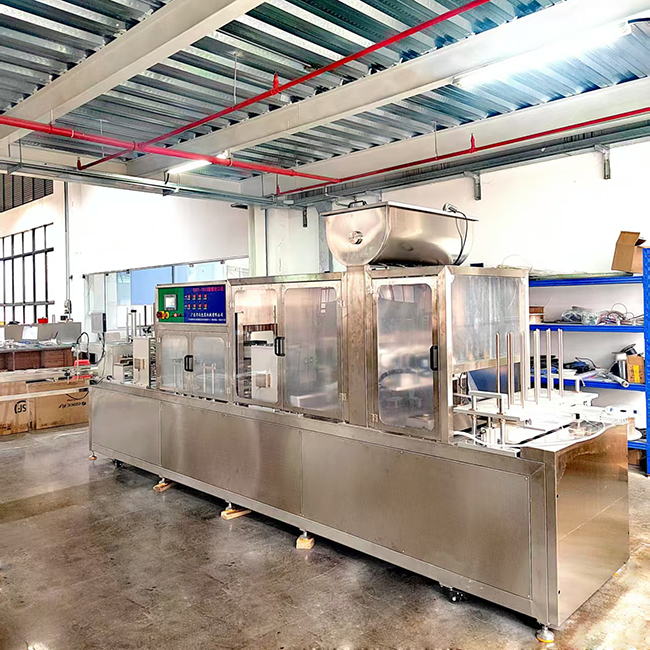

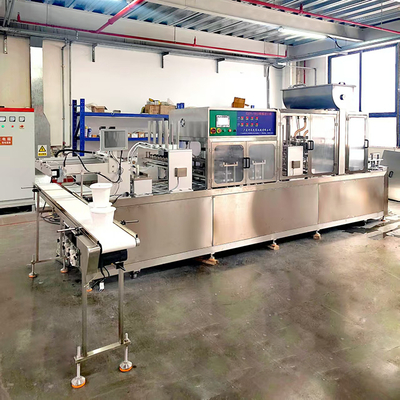

Sealerall Filling Sealing Capping Conveyor Belt Packaging Machine
Model QXY-1913
This fully automatic chain plate sealing machine offers high production efficiency and can be integrated with various filling machines. Customizable for different materials including powders, granules, liquids, pastes, and sauces. Available with either roll film or sheet film sealing options, with sheet film placement via automatic mechanical hand.
Machine Features and Specifications
Simultaneous sealing capacity: 8 pieces per cycle
Production speed: 5,100-5,700 pieces/hour
Fully automated process: cup dropping, filling, film sealing (roll or sheet), and output
Servo-driven filling system with ±1% accuracy and drip-proof heads
Ultrasonic material detection with automatic hopper replenishment
Food-grade stainless steel 304 construction (2B finish) with dust/rust/chemical resistance
Precision CNC-machined components for smooth, long-term operation
Stainless steel chain suitable for direct water rinsing
Sturdy welded steel frame with machined flat surfaces
Durable sealing mold with stainless steel and aluminum oxide construction
Precision temperature control (±1°C) for reliable sealing
Taiwanese photoelectric eye for pattern alignment
Siemens PLC control with HMI interface and fault alarms
Technical Parameters
Sealing Material
Plastic composite or aluminum foil film (≥0.1mm thickness)
Air Pressure
4-8 kg/cm²
Temperature Range
0-250°C
Power Consumption
5,000-8,000W
Voltage
380V 50Hz
Dimensions
Customizable per final design
Premium Components
Our machine incorporates high-quality international components:
Control System: Siemens HMI and PLC
Drive System: Taiwan servo motors
Pneumatics: Taiwan AirTAC cylinders and valves
Electrical: Schneider switches and breakers
Power Supply: Taiwan Delta components
Temperature Control: Japan Fujitsu gauges
Included Accessories
Each machine comes with essential spare parts and accessories:
10 heating tubes
2× 40A solid-state relays
2× 4V210-08 electromagnetic valves
2 push-button switches
Thermocouple
Operation Guidelines
Always connect grounding wire before operation
Keep hands clear of moving parts during operation
Use emergency stop button for immediate shutdown
Power off before installing sealing film
Begin with lower temperatures for new materials
Level machine using adjustable feet
Regularly lubricate guide columns
Daily cleaning of conveyor belt and motor areas
For any malfunctions, contact our service team - do not attempt repairs if unqualified.
Ordering & Service
Payment Terms: 50% deposit, 50% balance after inspection
Production Lead Time: 20-25 days
Warranty: 1 year free warranty with lifetime service support
Includes 2 free on-site service visits annually during warranty period
